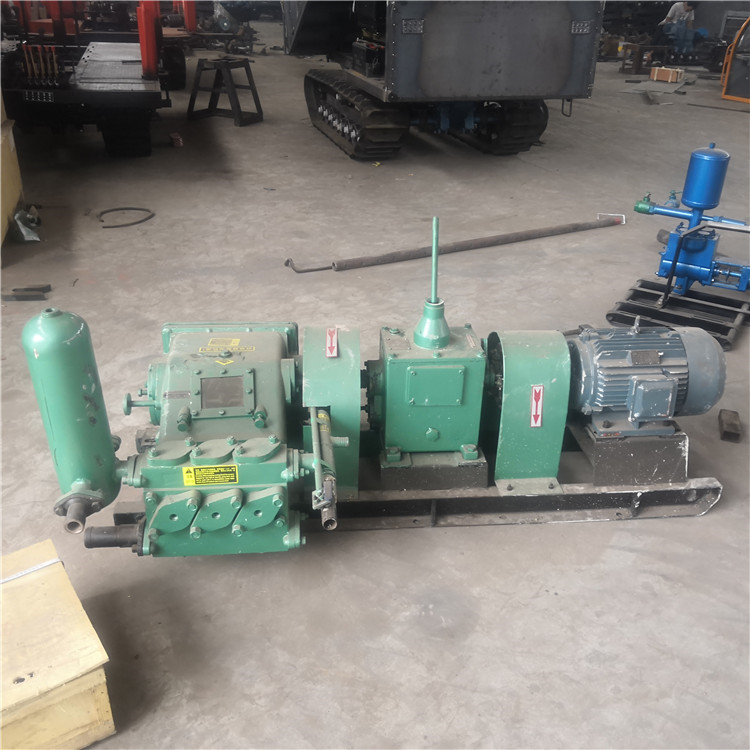

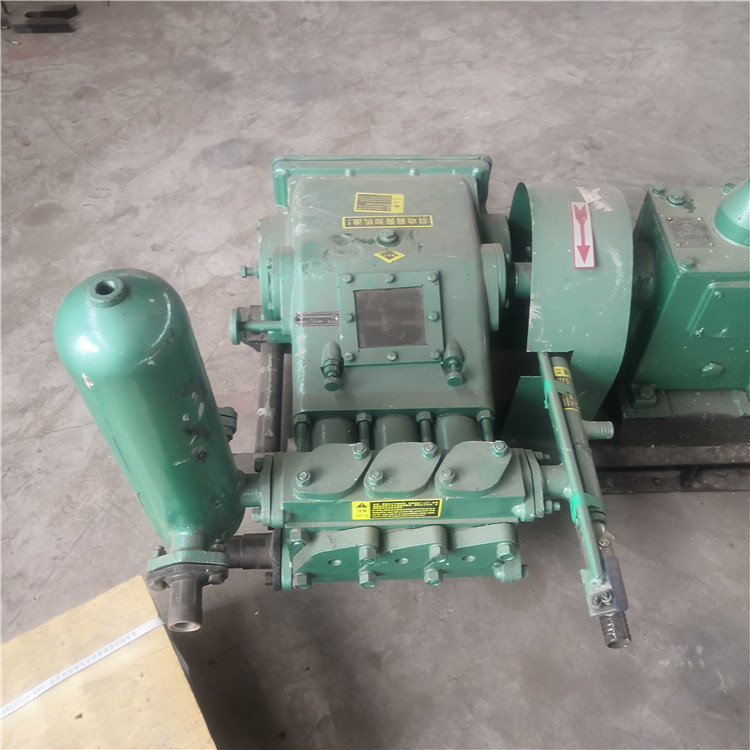

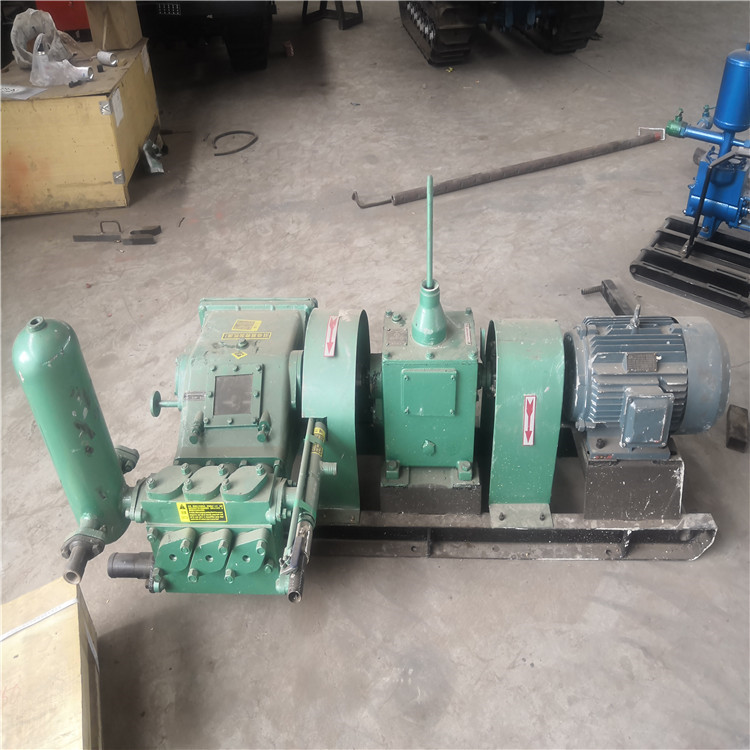

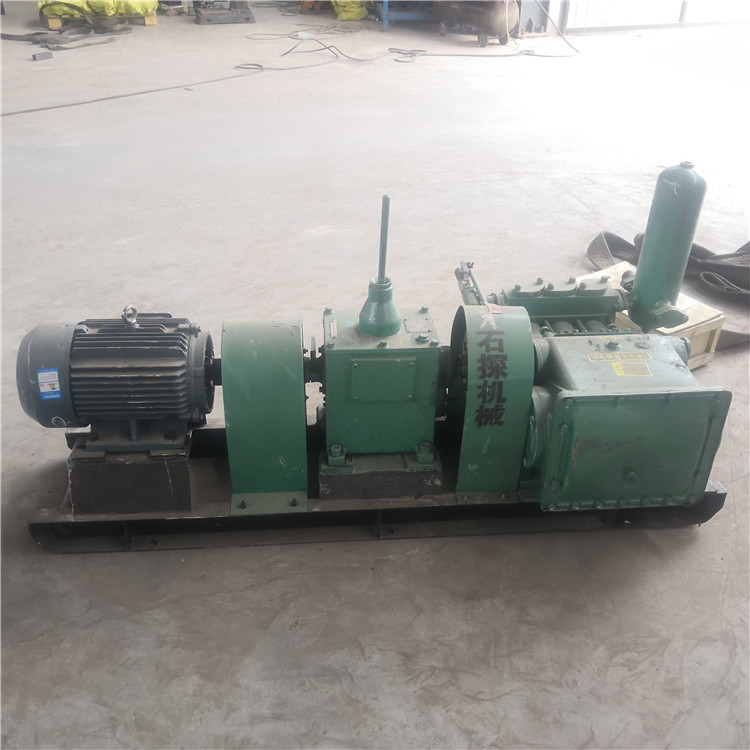

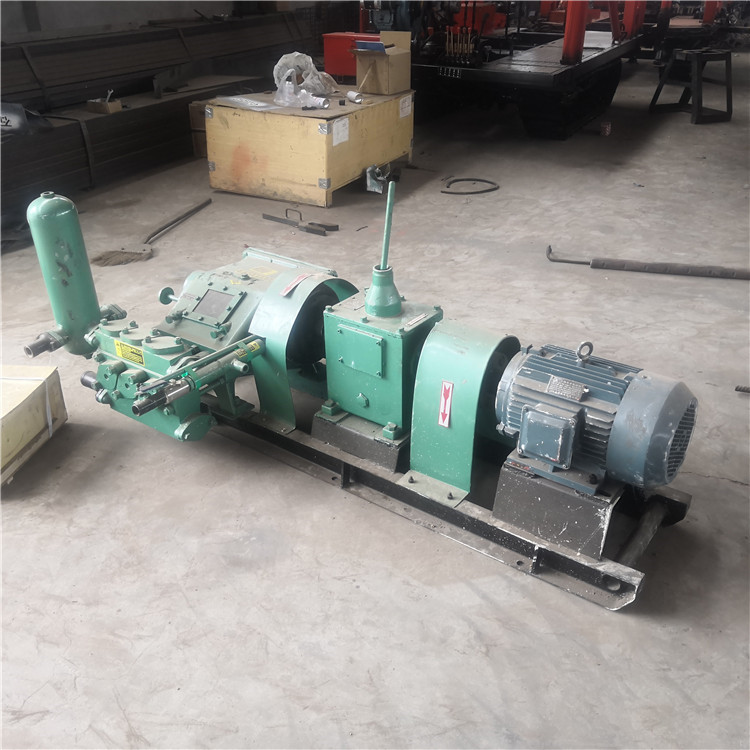

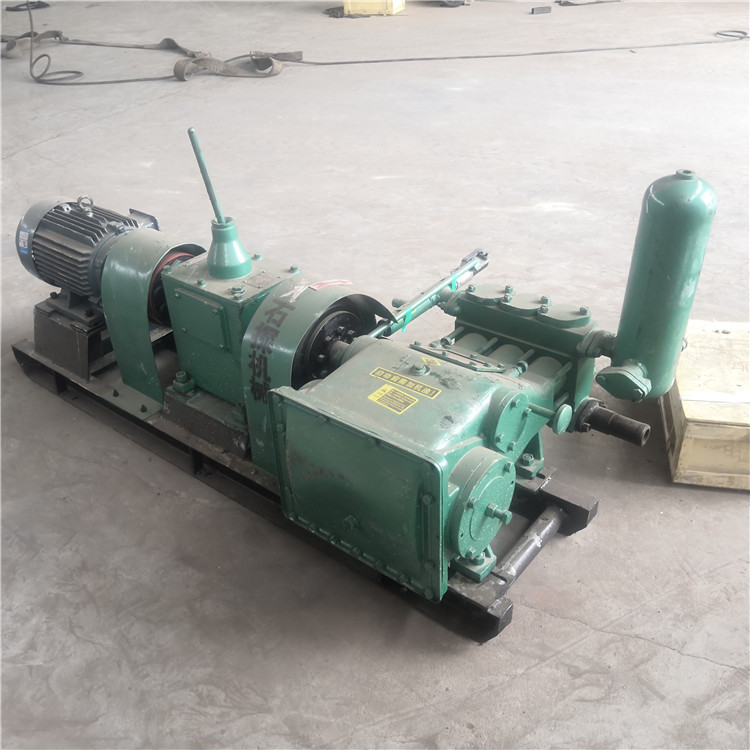

Diaphragm BW150 BW Series Triplex Mud Pump For Water Well Drilling Machine Use
BW150 Mud pump is horizontal, three-cylinder reciprocating single acting piston pump. The pump can be driven by electric motor or diesel engine according to the requirement of the customer in order. BW150 mud pump has the advantages of compact construction, light weight, readily movable and easy to be operated etc.
Main Features of mud pump:
Compact structure, light weight, small volume, beautiful appearance, is driven by a hydraulic motor, electric power or diesel engine.
BW series slurry pump is horizontal triplex grout pump with high stability and high pressure.
Mud pump has gear shift to adjust the flow, large output capacity, simple operation.
High quality pump parts, less wearing parts, long service life, low construction cost.
It has fast suction-discharge speed, high pump efficiency.
Mud pump has less noise and dust, environmental operat
ion
Diaphragm BW150 BW Series Triplex Mud Pump For Water Well Drilling Machine Use
| Model | BW150 drilling mud pump |
| Type | Horizontal, three cylinder reciprocating single acting piston pump |
| Cylinder diameter (mm) | 70 |
| Stroke (mm) | 80 |
| Pump speed (times/min) | 57 86 130 222 47 71 107 183 |
| Flow (l/min) | 38 58 90 150 32 47 72 125 |
| Pressure (Mpa) | 7 4.8 3.2 1.8 7 6 4 2.3 |
| Power | 7.5kw |
| Size (mm) | 1925*795*1150 (Diesel power) 1840*795*995 (Electric power) |
| Weight (kg) | 630 (Diesel power) 560 (Electric power) |
