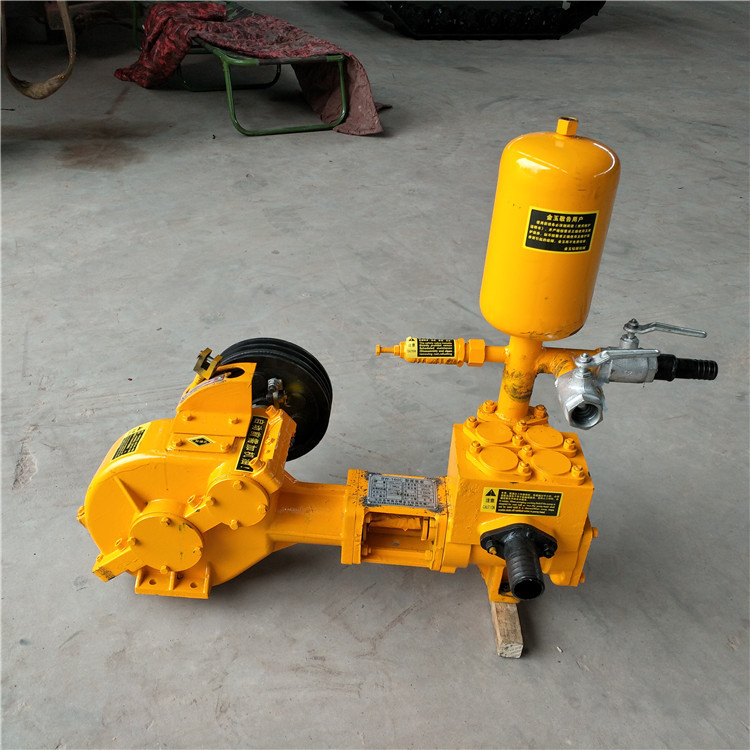

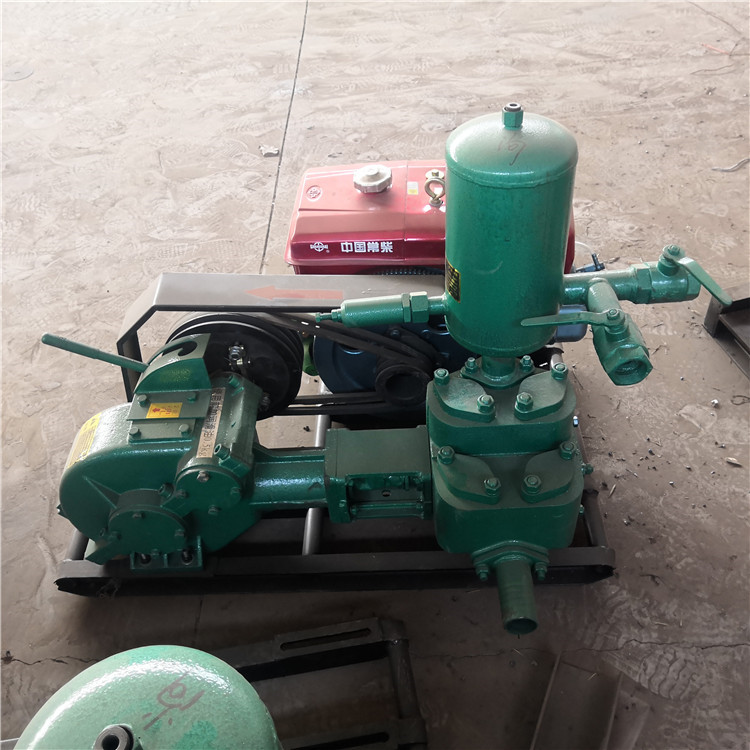

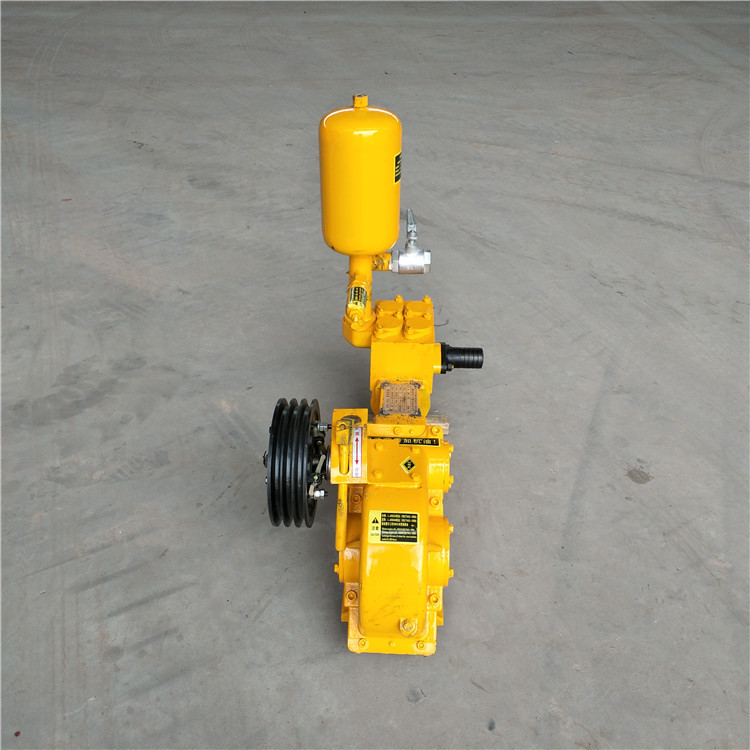

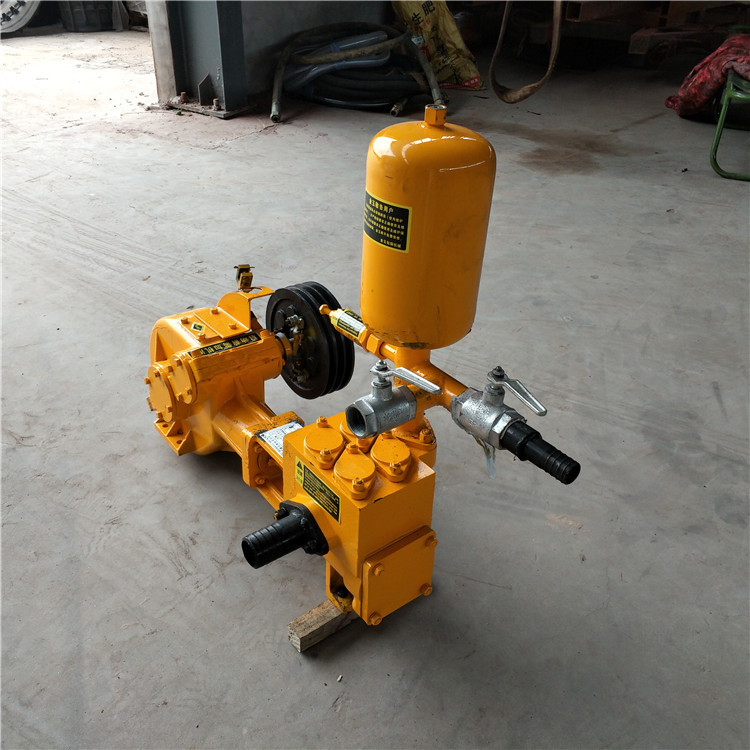

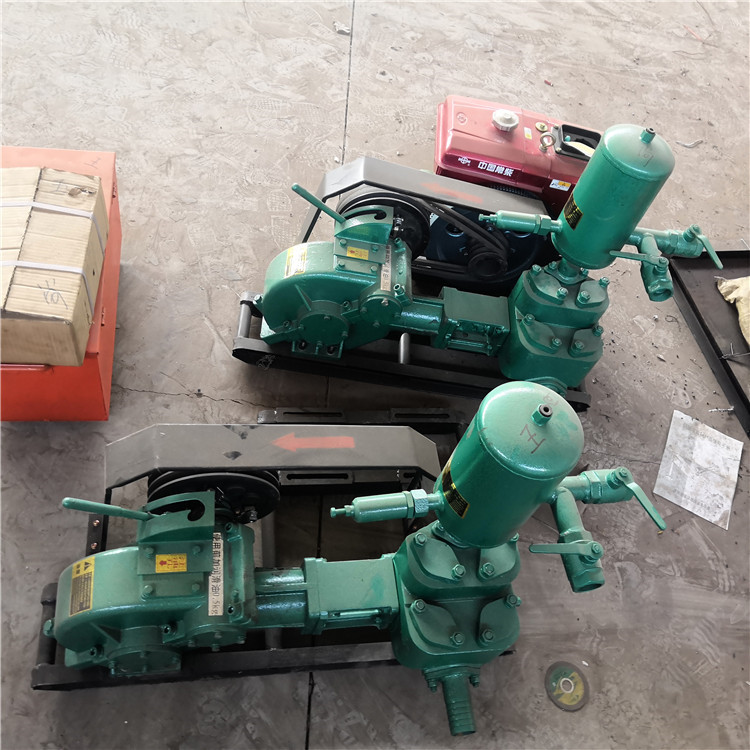

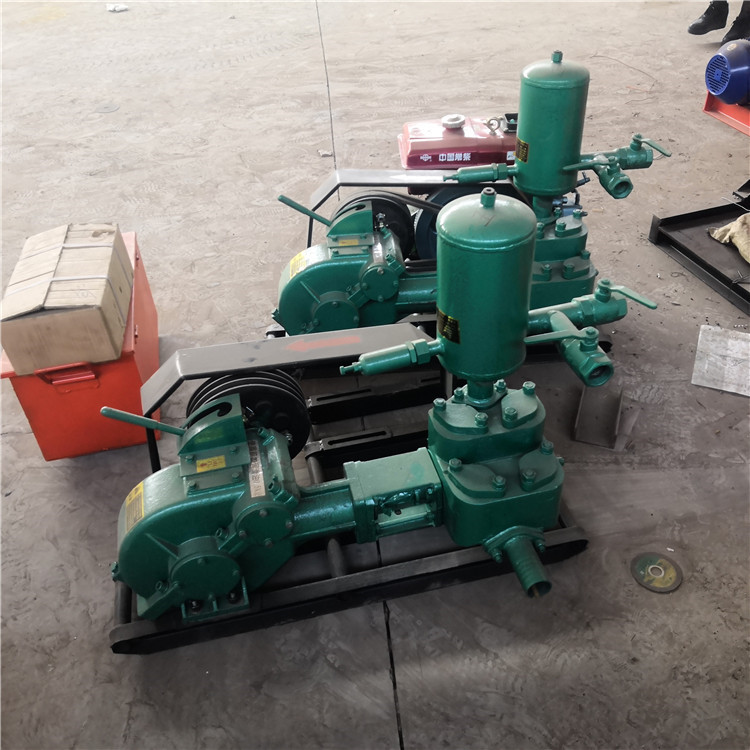

BW160 Hydraulic Triplex Plunger Drill Rig Mud Pump is a horizontal single-cylinder double-acting reciprocating piston pump, the pump head is equipped with four 40mm steel ball valve, thereby increasing the pressure. It is mainly used to provide flushing solution in blasting hole in geophysical prospecting. It can also be used to supply flushing liquid into well in bedrock drilling of engineering geological drilling rig. The pump has the characteristics of small volume, light weight and durability, and is more suitable for geological exploration
.
| Pump Type | Horizontal |
| Type of action | Double Acting |
| cylinders | 1 |
| Cylinder diameter (mm) | 95 |
| Stroke (mm) | 85 |
| Number of reciprocations (times / minute) | 165 |
| Displacement (liters / min) | 160 |
| Working pressure (MPa) | 1.6 |
| Transmission shaft speed (r / min) | 951 |
| V - belt pulley diameter (mm) | 270 |
| V-belt pulley type and slot number | B-type × 3 slot |
| Transmission power (kW) | 7.5 |
| Diameter of suction pipe (mm) | ø45 |
| Drain pipe diameter (mm) | ø38 |
| Overall dimensions (L* W* H) (mm) | 1110* 800*950 |
| Weight (not including power machine) (kg) | 136 |
| Motor Y132M-4 Power | 7.5KW |
| Speed | 1440r / min |
| Diesel Engine R180 Power | 5.67KW |
| Diesel Engine Speed | 2600r / min |
Question: How about your after-sales service? By b***r on 2020-08-29
Answer: 1. Provide customers with online installation and commissioning instructions. 2. Well trained engineers can serve overseas. (non epidemic impact) By admin on 2020-08-30
Question: How is your customer service? By b***r on 2020-07-28
Answer: 24-hour online service. The 48 hour problem was solved (except in special cases). By admin on 2020-07-29
Question: Can you provide us with the documents for customs clearance? By b***r on 2020-06-27
Answer: Of course. We will send you commercial invoice, sales contract, packing list, bill of lading (FOB or CFR, CIF terms), insurance policy (if CIF terms), and certificate of origin if you need it By admin on 2020-06-28
Question: What are the terms of payment? By b***r on 2020-05-26
Answer: TT, Western Union transfer. By admin on 2020-05-27
Question: How long is the warranty of your well drilling rig? By b***r on 2020-04-24
Answer: Except for consumable spare parts, the whole machine shall be one year. By admin on 2020-04-25
Question: How long is your delivery time? By b***r on 2020-03-23
Answer: Small hydraulic drilling rigs generally take 5-7 days, and large pneumatic water well drilling rigs generally take 7-15 days. If there is an urgent order, please contact our sales in advance. By admin on 2020-03-24
Question: Are you a manufacturer or a trading company? By b***r on 2020-02-22
Answer: We are a 20 years professional manufacturer with ISO certificate. We have a large modern drilling rig plant in Hebei, China. By admin on 2020-02-23
Question: Where is the address of your company? By b***r on 2020-01-21
Answer: Our factory is in Jinzhou, Shijiazhuang City, Hebei Province, China By admin on 2020-01-22
Question: What kind of drilling rig do you have? By b***r on 2020-01-20
Answer: We mainly produce small hydraulic drilling rig, water well drilling rig, core drilling rig, engineering drilling rig, geological exploration drilling rig, etc., and we will recommend the suitable model according to your exact requirement . By admin on 2020-01-21
Question: How long can your air compressor be used? By b***r on 2019-10-20
Answer: Normally more than 10 years. By admin on 2019-10-23
