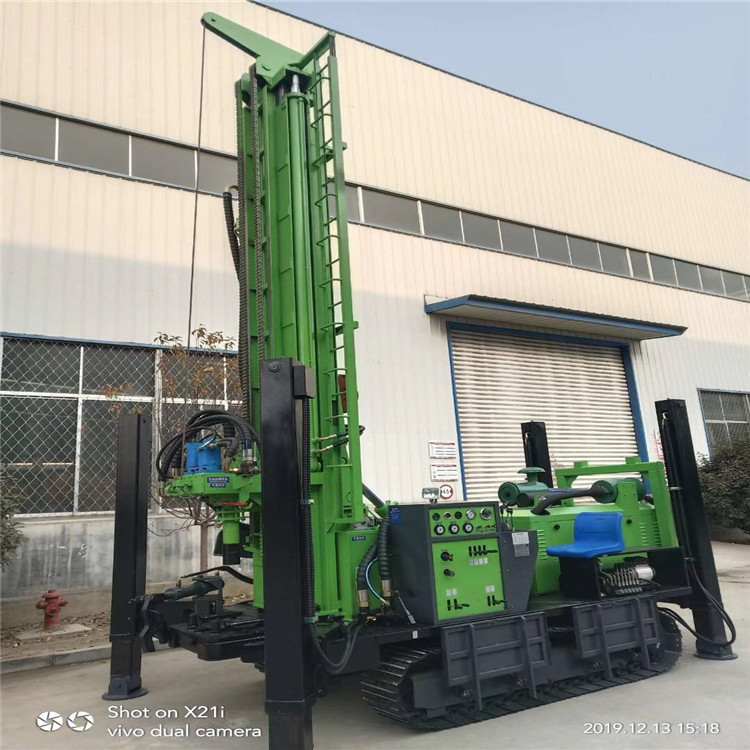

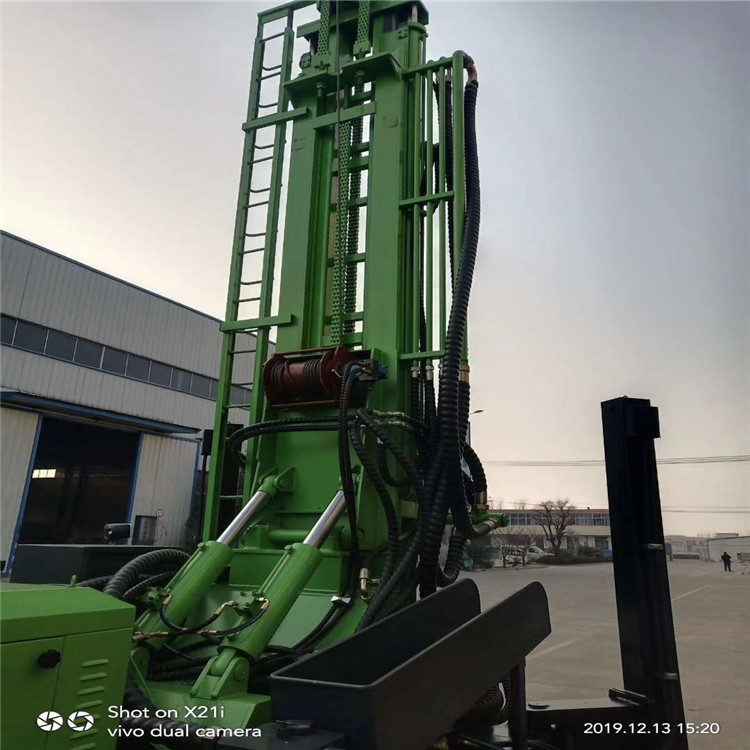

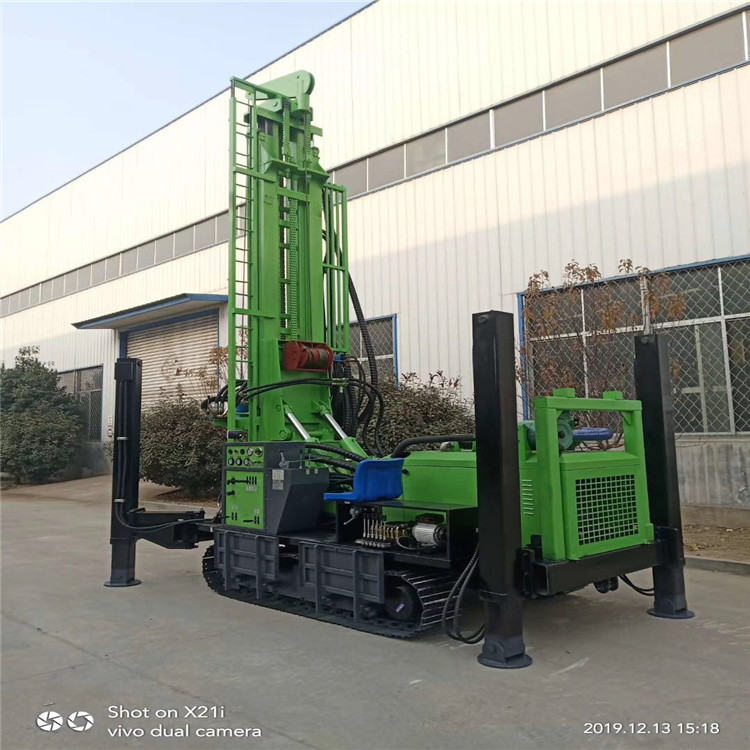

1. Introduction of ST-400 mud/air drilling rig
ST-400 mud/air drilling rig is a water well drilling rig that mix mud drilling rig and air drilling rig in one equipment with mechanical top head. It is a good solution to the difficulty of drilling in the soil layer for DTH rig and the low efficiency of drilling for mud rotary rig in the hard rock, gravel and pebble layer. The mud/air drilling rig adapts to various soil strata. The mud/air drilling rig is efficiency and energy saving to drill water well and geological exploration of core sample.
2. Features of ST-400 mud/air drilling rig
Adopt AMT automatic manual transmission gearbox.

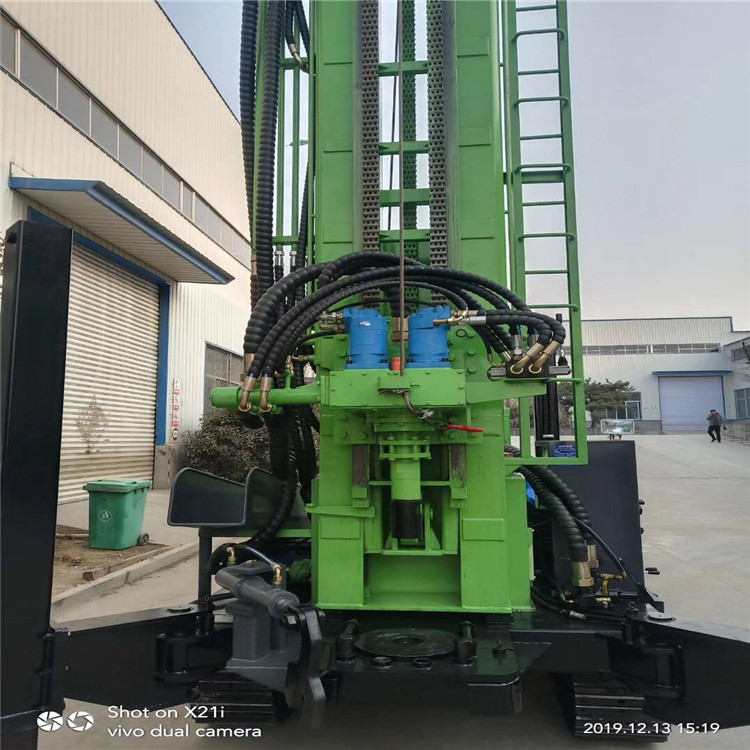

The rig adopts a long stroke mechanism and a mechanical power head.
The drilling rig adopts double oil pump for oil supply, and the hydraulic system uses split flow and convergence technology.
The main shaft of the drilling machine adopts mechanical transmission.
Some functional interfaces are reserved in the hydraulic control system of the drilling rig.
Ø Technical data
Drilling depth | 400m |
Drilling diameter | Φ140-Φ350mm |
Working air pressure | 1.7-3.5MPa |
Air consumption | 17-30m3/min |
Drilling pipe diameter | Φ89, Φ102mm, Φ108mm |
Length of drill pipe | 1.5m, 2.0m, 3.0m,6.0m |
One push length | 6.6m |
Tramming speed | 2.5km/h |
Climbing ability (Max.) | 30° |
Ground clearance (Min.) | 250mm |
Rotation speed | 45-115 rpm |
Rotation torque | 6500-9000 N.m |
Power | 92 Kw |
Weight | 10 |
Dimension | 5900x2100x2850mm |
{{reply_items.text}}By {{reply_items.author}}
Question: How about your after-sales service? By *** on 2021-09-07
Answer: 1. Provide customers with online installation and commissioning instructions. 2. Well trained engineers can serve overseas. (non epidemic impact) By 王丽 on 2021-09-08
Question: How is your customer service? By *** on 2021-09-01
Answer: 24-hour online service. The 48 hour problem was solved (except in special cases). By 王丽 on 2021-09-02
Question: Can you provide us with the documents for customs clearance? By *** on 2021-08-04
Answer: Of course. We will send you commercial invoice, sales contract, packing list, bill of lading (FOB or CFR, CIF terms), insurance policy (if CIF terms), and certificate of origin if you need it By 王丽 on 2021-08-04
Question: How long is your delivery time? By *** on 2021-07-20
Answer: Small hydraulic drilling rigs generally take 5-7 days, and large pneumatic water well drilling rigs generally take 7-15 days. If there is an urgent order, please contact our sales in advance. By 王丽 on 2021-07-19
Question: How long is the warranty of your well drilling rig? By *** on 2021-07-14
Answer: Except for consumable spare parts, the whole machine shall be one year. By 王丽 on 2021-07-16
Question: How long can your air compressor be used? By *** on 2021-07-07
Answer: Normally more than 10 years. By 王丽 on 2021-07-12
Question: What kind of drilling rig do you have? By *** on 2021-06-29
Answer: We mainly produce small hydraulic drilling rig, water well drilling rig, core drilling rig, engineering drilling rig, geological exploration drilling rig, etc., and we will recommend the suitable model according to your exact requirement . By 王丽 on 2021-06-14
Question: 1.What depth can it dig to? Preferebly up to 200m - 300m 2. l want diging diameter of 6in, 8in, 10in, 12in, 16in. 3. Pls spacifay a. Rotary pump with full required gajets. b. Mud pump with full required equipment . Pls give price as well. By A***y on 2021-06-01
Answer: 1: We have drilling rigs with 30-600m depth. 2: According to your hole diameters. We recommend our ST-350 drilling rig within 12 inches. If the diameter reaches 16 inches, it will be our ST-600. 3: Our pneumatic drilling rigs use mud pump not rotary pump . 4: Please confirm the drilling rig model you need,we will recommend a suitable mud pump for you and work out an accurate pricelist for your reference,thanks. By 王丽 on 2021-06-02
Question: Where is the address of your company? By *** on 2021-03-29
Answer: Jinzhou City Shitan Machinery Equipment CO. LTD. is be located in Jinzhou, Shijiazhuang City, Hebei Province, China By 王丽 on 2021-04-01
Question: Are you a manufacturer or a trading company? By *** on 2021-01-13
Answer: Jinzhou City Shitan Machinery Equipment CO. LTD. is a 20 years professional manufacturer with ISO certificate. We have a large modern drilling rig plant in Hebei, China. By 王丽 on 2021-01-15
