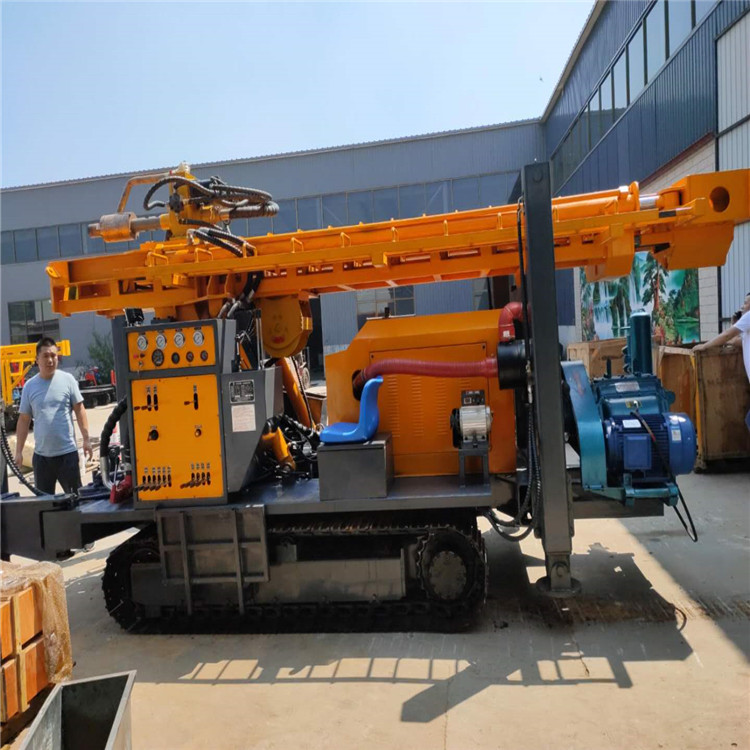

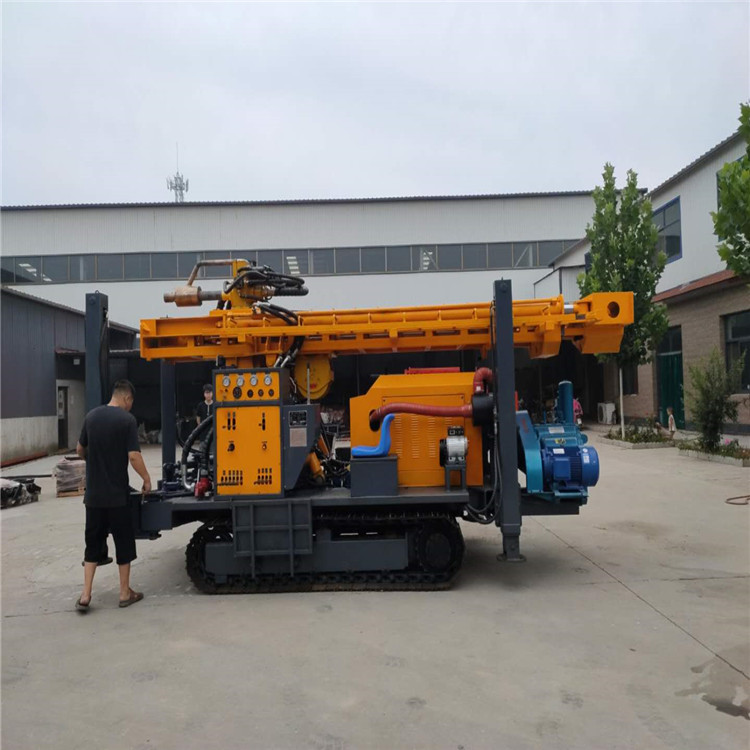

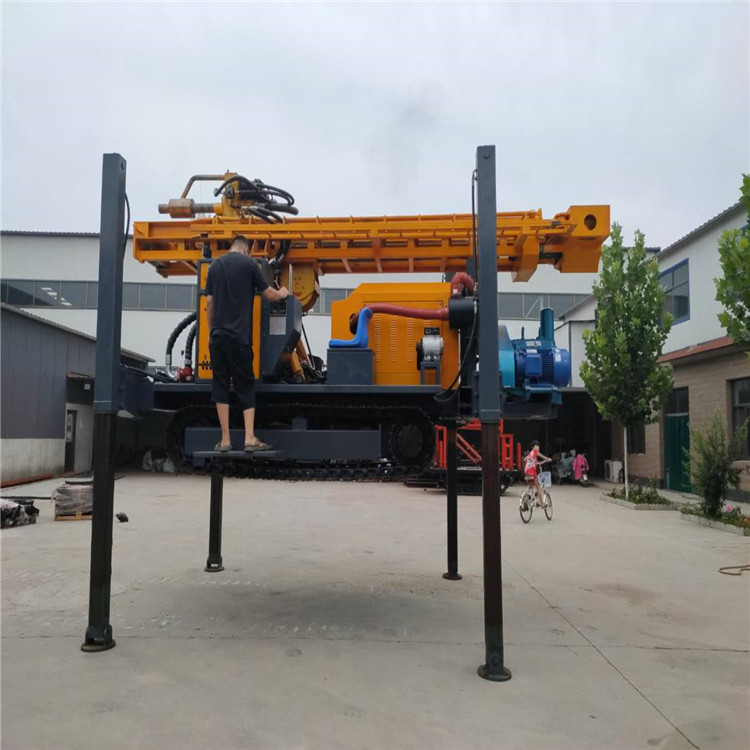

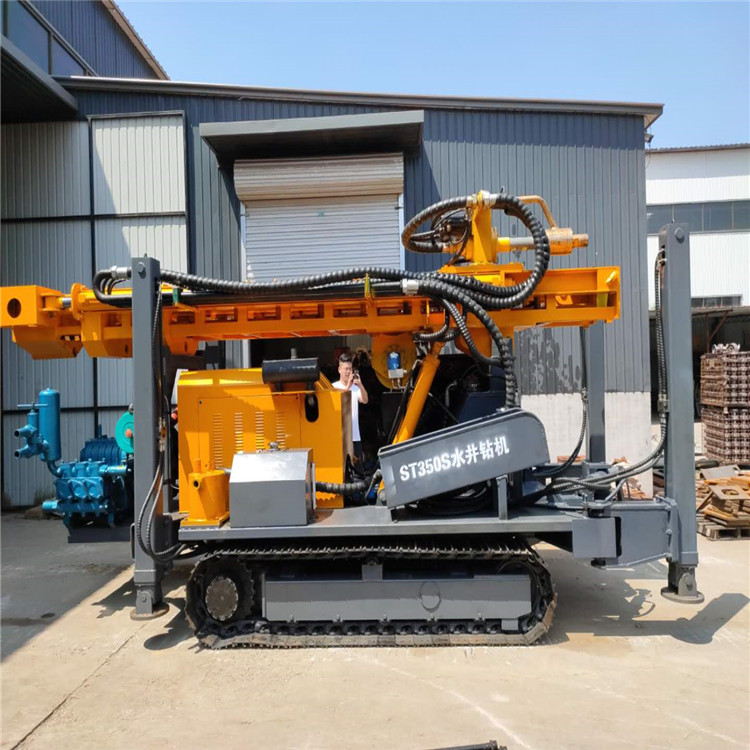

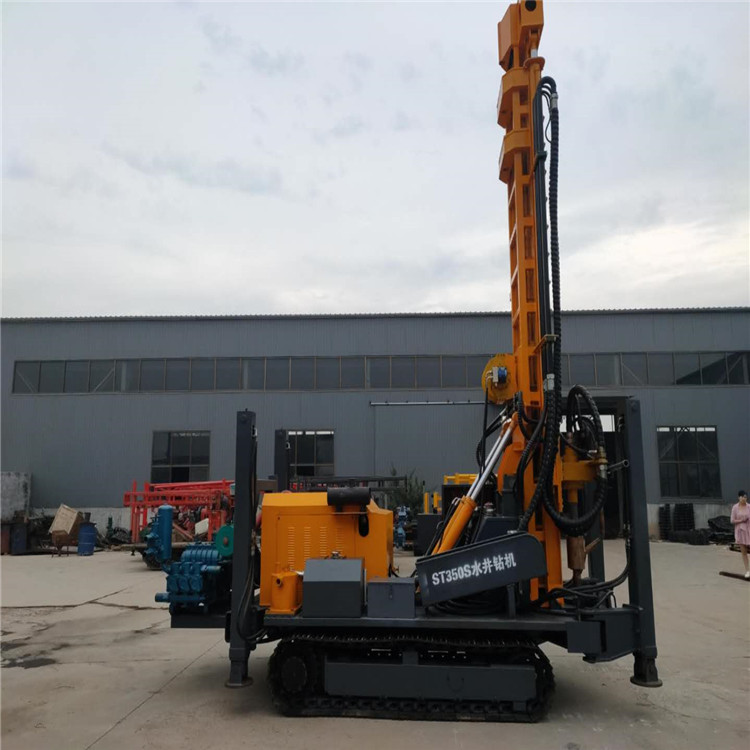

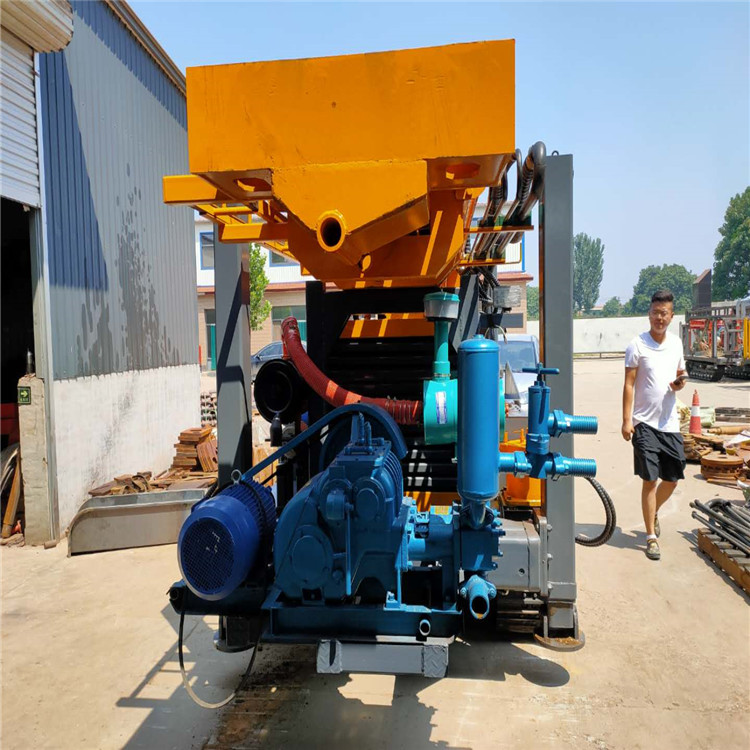

300m Air Compressor Pneumatic Bore Well Drilling Machine ST-300

2 customer reviews {{parseInt(detail_data.left_num) ? 'In Stock.' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} SKU.105323
  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? detail_data.left_num +' In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

$   27,800
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{detail_data.displayed_price.ex_sell_type}}
{{ item.num }} pieces
$ {{ item.price }}
{{item.name}}* {{item.values[0].value}}
{{sku.value}}
Quantity:
{{detail_data.displayed_price.unit_type_name}}(s)
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Total Price:
$ 27,800
This is a virtual product.
Weight:
{{Number(packInfo.weight).toFixed(2)}} KG
Package:
{{packInfo.length}}cm*{{packInfo.width}}cm*{{packInfo.height}}cm
  • Description
  • FL series bore well drilling machine is a type of light, high efficient and multifunctional drilling rig. It is widely applied in water well, irrigation well or other boreholes, especially good for mountain areas or rock foundations. The drilling rig adopts new hydraulic technology, supporting high-torque hydraulic motor rotation and large-bore hydraulic cylinder propulsion.

    300m Air Compressor Pneumatic Bore Well Drilling Machine ST-300300m Air Compressor Pneumatic Bore Well Drilling Machine ST-300300m Air Compressor Pneumatic Bore Well Drilling Machine ST-300300m Air Compressor Pneumatic Bore Well Drilling Machine ST-300300m Air Compressor Pneumatic Bore Well Drilling Machine ST-300300m Air Compressor Pneumatic Bore Well Drilling Machine ST-300

  • Specification
  • Specification
    Weight of whole machine
    7T
    Drilling caliber
    140-325mm
    Drilling depth
    300m
    One-time push length
    3.4m
    Walking speed
    2.5km/h
    Climbing ability
    Max. 30
    Power of main machine
    75.8kw
    Working pressure
    1.7-3.0mpa
    Air consumption
    17-35m3/min
    Diameter of drill rod
    76, 89, 102mm
    Length of drill rod
    1.5, 2.0, 3.0m
    Lifting force
    18T
    Rotation speed
    40-70rpm
    Rotation torque
    5700-7500N.m
    Dimension
    4100*1950*2600mm
  • Customer Reviews
  • Customer Reviews
    • Write a Review
      Average Rating:
      {{stardata.star}}
      based on {{comment.count}} reviews
    • {{comment.star5}}%
      {{comment.star4}}%
      {{comment.star3}}%
      {{comment.star2}}%
      {{comment.star1}}%
    No data
    300m Air Compressor Pneumatic Bore Well Drilling Machine ST-300
    Jeremy
    Verified Purchase
    5 .0
    2019-03-15
    The Pneumatic well drilling machine is very good, with good quality, convenient use and fast drilling
    300m Air Compressor Pneumatic Bore Well Drilling Machine ST-300
    Ivin
    Verified Purchase
    5 .0
    2019-03-14
    The drilling rig has good quality and affordable price, and the service of Shitan Machinery Equipment is also very satisfactory
    300m Air Compressor Pneumatic Bore Well Drilling Machine ST-300
    {{comments.user.name}}
    Verified Purchase
    {{comments.rating}}.0
    {{comments.date_added}}
    {{comments.topic}}
    {{comments.text}}
    Showing {{comments.replies.length}} comment

    {{reply_items.text}}By {{reply_items.author}}

  • Questions & Answers
  • Questions & Answers
    Ask a Question
    No data
    • Question: How about your after-sales service? By b***r on 2020-08-29

      Answer: 1. Provide customers with online installation and commissioning instructions. 2. Well trained engineers can serve overseas. (non epidemic impact) By admin on 2020-08-30

    • Question: How is your customer service? By b***r on 2020-07-28

      Answer: 24-hour online service. The 48 hour problem was solved (except in special cases). By admin on 2020-07-29

    • Question: Can you provide us with the documents for customs clearance? By b***r on 2020-06-27

      Answer: Of course. We will send you commercial invoice, sales contract, packing list, bill of lading (FOB or CFR, CIF terms), insurance policy (if CIF terms), and certificate of origin if you need it By admin on 2020-06-28

    • Question: What are the terms of payment? By b***r on 2020-05-26

      Answer: TT, Western Union transfer. By admin on 2020-05-27

    • Question: How long is your delivery time? By b***r on 2020-04-26

      Answer: Small hydraulic drilling rigs generally take 5-7 days, and large pneumatic water well drilling rigs generally take 7-15 days. If there is an urgent order, please contact our sales in advance. By admin on 2020-04-27

    • Question: How long can your air compressor be used? By b***r on 2020-04-25

      Answer: Normally more than 10 years. By admin on 2020-04-26

    • Question: How long is your delivery time? By b***r on 2020-03-23

      Answer: Small hydraulic drilling rigs generally take 5-7 days, and large pneumatic water well drilling rigs generally take 7-15 days. If there is an urgent order, please contact our sales in advance. By admin on 2020-03-24

    • Question: Are you a manufacturer or a trading company? By b***r on 2020-02-22

      Answer: We are a 20 years professional manufacturer with ISO certificate. We have a large modern drilling rig plant in Hebei, China. By admin on 2020-02-23

    • Question: Where is the address of your company? By b***r on 2020-01-21

      Answer: Our factory is in Jinzhou, Shijiazhuang City, Hebei Province, China By admin on 2020-01-22

    • Question: What kind of drilling rig do you have? By b***r on 2020-01-20

      Answer: We mainly produce small hydraulic drilling rig, water well drilling rig, core drilling rig, engineering drilling rig, geological exploration drilling rig, etc., and we will recommend the suitable model according to your exact requirement . By admin on 2020-01-21
