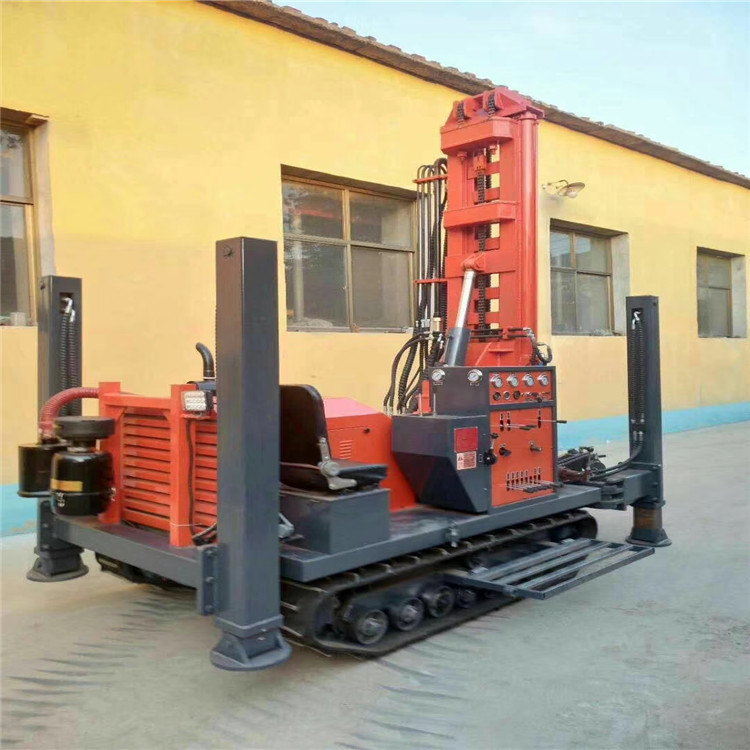

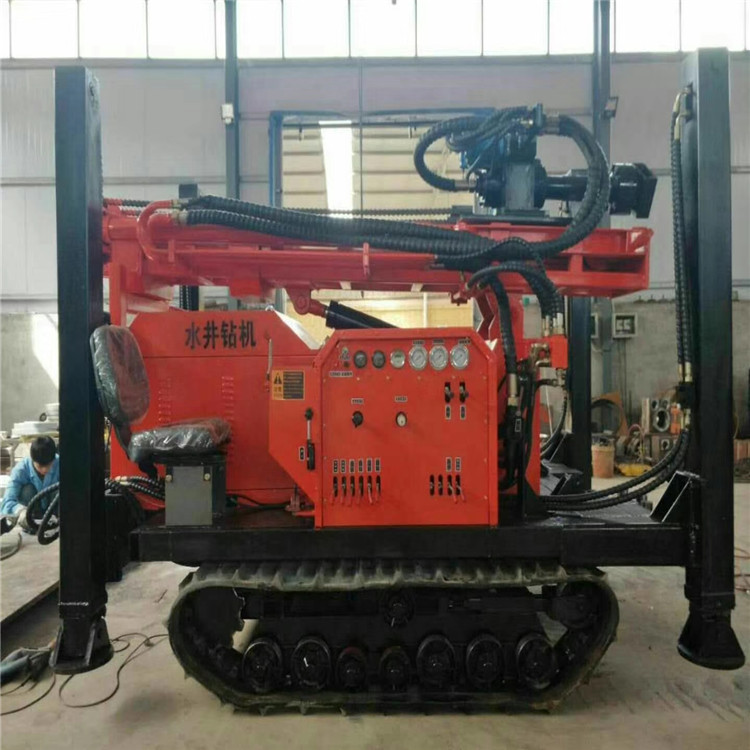

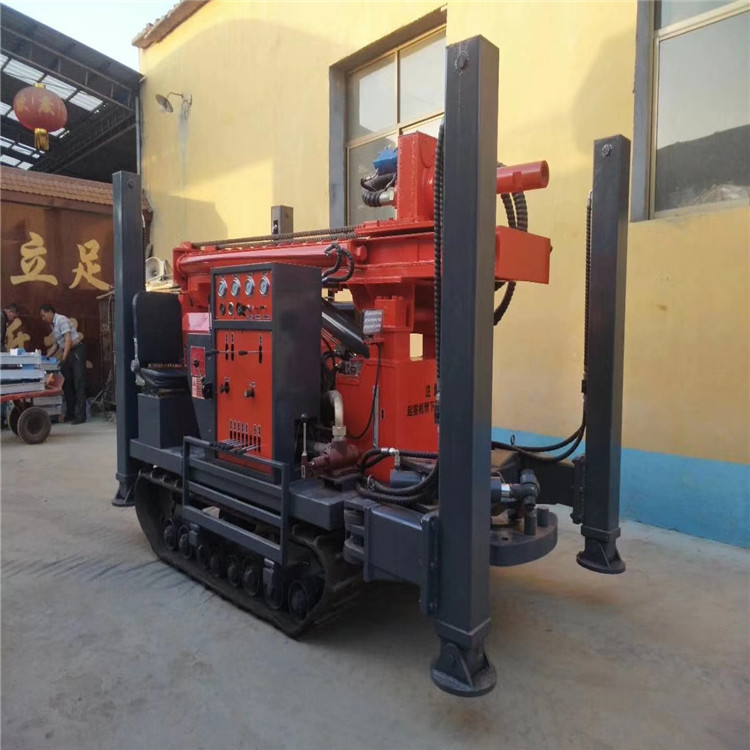

ST-180 crawler pneumatic drilling machine 180 m hydraulic leg type pneumatic submersible drilling machine has large drill

2 customer reviews {{parseInt(detail_data.left_num) ? 'In Stock.' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} SKU.105321
  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? detail_data.left_num +' In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

$   18,880
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{detail_data.displayed_price.ex_sell_type}}
{{ item.num }} pieces
$ {{ item.price }}
{{item.name}}* {{item.values[0].value}}
{{sku.value}}
Quantity:
{{detail_data.displayed_price.unit_type_name}}(s)
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Total Price:
$ 18,880
This is a virtual product.
Weight:
{{Number(packInfo.weight).toFixed(2)}} KG
Package:
{{packInfo.length}}cm*{{packInfo.width}}cm*{{packInfo.height}}cm
  • Description
  • All drilling rigs here are multifunctional, it can be used with air compressor, mud pump, even we can just use the dry hydraulic drilling method.

    The drilling rigs are not only designed for water drilling. They can be used in all conditions based on pore-forming purpose.

    They are widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering.

    Our drilling rigs are more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance.

    ST-180 crawler pneumatic drilling machine 180 m hydraulic leg type pneumatic submersible drilling machine has large drillST-180 crawler pneumatic drilling machine 180 m hydraulic leg type pneumatic submersible drilling machine has large drillST-180 crawler pneumatic drilling machine 180 m hydraulic leg type pneumatic submersible drilling machine has large drillST-180 crawler pneumatic drilling machine 180 m hydraulic leg type pneumatic submersible drilling machine has large drillST-180 crawler pneumatic drilling machine 180 m hydraulic leg type pneumatic submersible drilling machine has large drill

  • Specification
  • model
    ST180
    Gross weight
    T
    3.8
    Dimension
    mm
    3800*1550*2350
    Aperture
    mm
    130-254
    Drilling depth
    m
    180
    Feed stroke
    mm
    3000
    Travel speed
    km/h
    2.5
    Grade ability
    Max.
    30°
    Rising height from ground
    mm
    250
    Wind pressure
    Mpa
    1.7-2.5
    Air consumption
    m³/min
    15-27
    Engine power
    kw
    42-65
    Rotary speed
    rpm
    48-70
    Rotation torque
    N.m
    4200-5600
  • Customer Reviews
  • Customer Reviews
    • Write a Review
      Average Rating:
      {{stardata.star}}
      based on {{comment.count}} reviews
    • {{comment.star5}}%
      {{comment.star4}}%
      {{comment.star3}}%
      {{comment.star2}}%
      {{comment.star1}}%
    No data
    ST-180 crawler pneumatic drilling machine 180 m hydraulic leg type pneumatic submersible drilling machine has large drill
    Harry
    Verified Purchase
    5 .0
    2019-03-13
    On the whole, the drilling rig is very good, the service attitude of the store is very good, and the quality is also very good
    ST-180 crawler pneumatic drilling machine 180 m hydraulic leg type pneumatic submersible drilling machine has large drill
    Gavin
    Verified Purchase
    5 .0
    2019-03-12
    Very satisfied with the drilling rig
    ST-180 crawler pneumatic drilling machine 180 m hydraulic leg type pneumatic submersible drilling machine has large drill
    {{comments.user.name}}
    Verified Purchase
    {{comments.rating}}.0
    {{comments.date_added}}
    {{comments.topic}}
    {{comments.text}}
    Showing {{comments.replies.length}} comment

    {{reply_items.text}}By {{reply_items.author}}

  • Questions & Answers
  • Questions & Answers
    Ask a Question
    No data
    • Question: How about your after-sales service? By b***r on 2020-08-29

      Answer: 1. Provide customers with online installation and commissioning instructions. 2. Well trained engineers can serve overseas. (non epidemic impact) By admin on 2020-08-30

    • Question: How is your customer service? By b***r on 2020-07-28

      Answer: 24-hour online service. The 48 hour problem was solved (except in special cases). By admin on 2020-07-29

    • Question: Can you provide us with the documents for customs clearance? By b***r on 2020-06-27

      Answer: Of course. We will send you commercial invoice, sales contract, packing list, bill of lading (FOB or CFR, CIF terms), insurance policy (if CIF terms), and certificate of origin if you need it By admin on 2020-06-28

    • Question: What are the terms of payment? By b***r on 2020-05-26

      Answer: TT, Western Union transfer. By admin on 2020-05-27

    • Question: How long is your delivery time? By b***r on 2020-04-26

      Answer: Small hydraulic drilling rigs generally take 5-7 days, and large pneumatic water well drilling rigs generally take 7-15 days. If there is an urgent order, please contact our sales in advance. By admin on 2020-04-27

    • Question: How long can your air compressor be used? By b***r on 2020-04-25

      Answer: Normally more than 10 years. By admin on 2020-04-26

    • Question: How long is your delivery time? By b***r on 2020-03-23

      Answer: Small hydraulic drilling rigs generally take 5-7 days, and large pneumatic water well drilling rigs generally take 7-15 days. If there is an urgent order, please contact our sales in advance. By admin on 2020-03-24

    • Question: Are you a manufacturer or a trading company? By b***r on 2020-02-22

      Answer: We are a 20 years professional manufacturer with ISO certificate. We have a large modern drilling rig plant in Hebei, China. By admin on 2020-02-23

    • Question: Where is the address of your company? By b***r on 2020-01-21

      Answer: Our factory is in Jinzhou, Shijiazhuang City, Hebei Province, China By admin on 2020-01-22

    • Question: What kind of drilling rig do you have? By b***r on 2020-01-20

      Answer: We mainly produce small hydraulic drilling rig, water well drilling rig, core drilling rig, engineering drilling rig, geological exploration drilling rig, etc., and we will recommend the suitable model according to your exact requirement . By admin on 2020-01-21
