Function:
1. Core drill and sampling
2. Small well boring

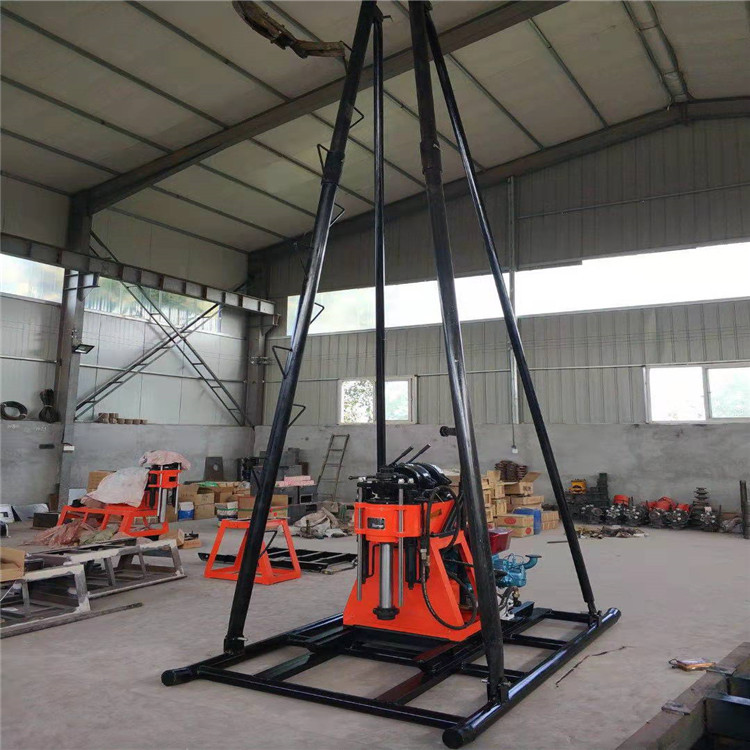

3. Tower has been advanced to staircase drilling mast, easy to erect, climb, and use, small, more compact and light than previous four column mast.
Tools Applied:
1. General rods in 42mm dia
2. All sorts of barrels that used in conventional drilling:
T2, T6, NMLC, LTK, WF, WG, WM, WG & B single barrel, Chinese single barrel and NQ, HQ barrel(not wireline drilling).
3. SPT tools
4. Other tools that required in the tests and conform to relative international standard such as shelby tubes, bailers etc
Feature:
1. Small, light and compact in structure

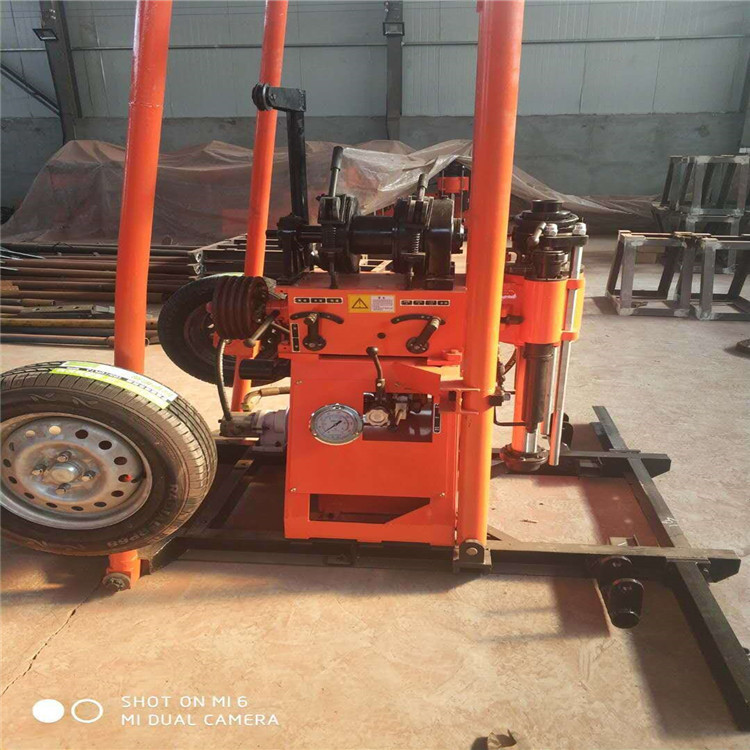

2. 2 wheels trailer for easy relocation on site
3. easy to use tower, fast to install, safe and stable
4. high quality, long duration, long lasting performance
The Specifictation of This Item

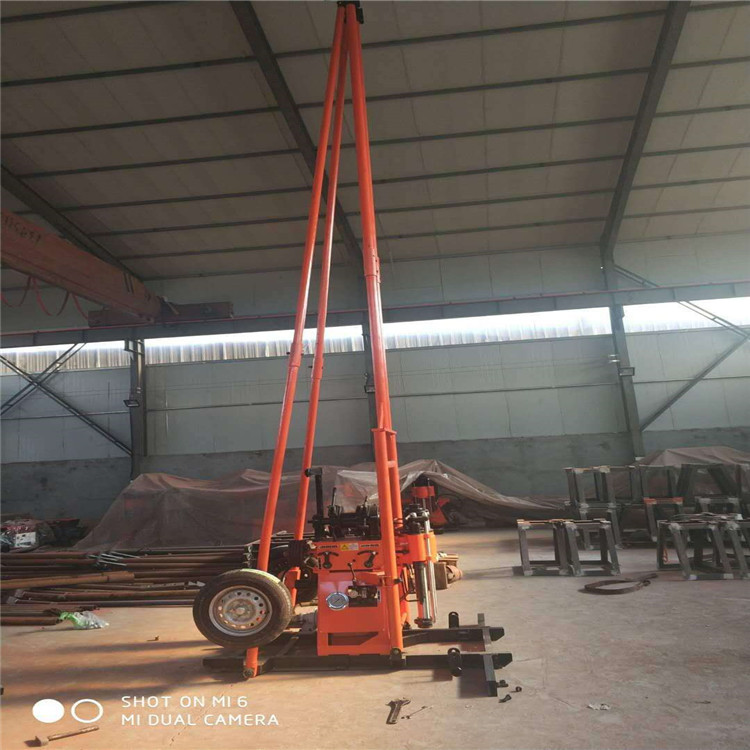

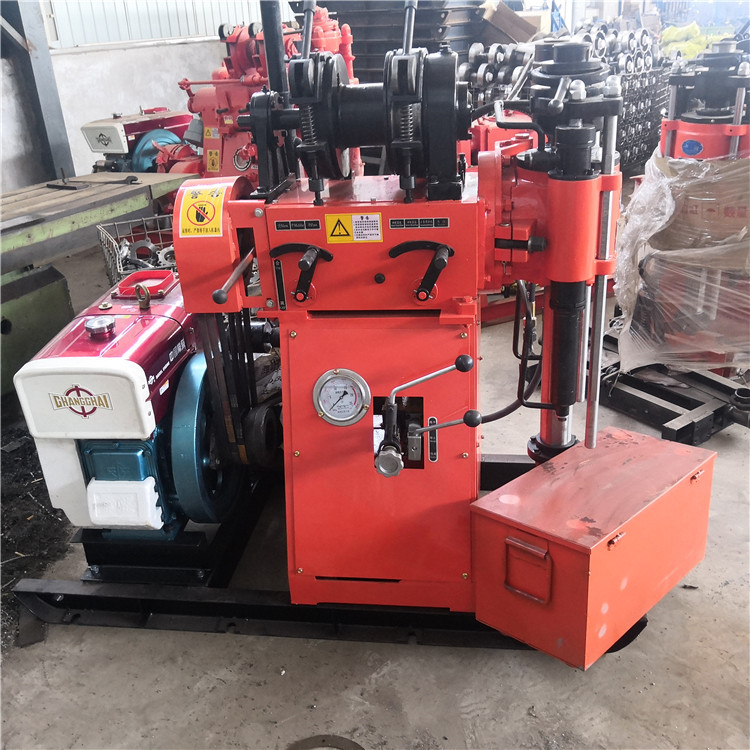

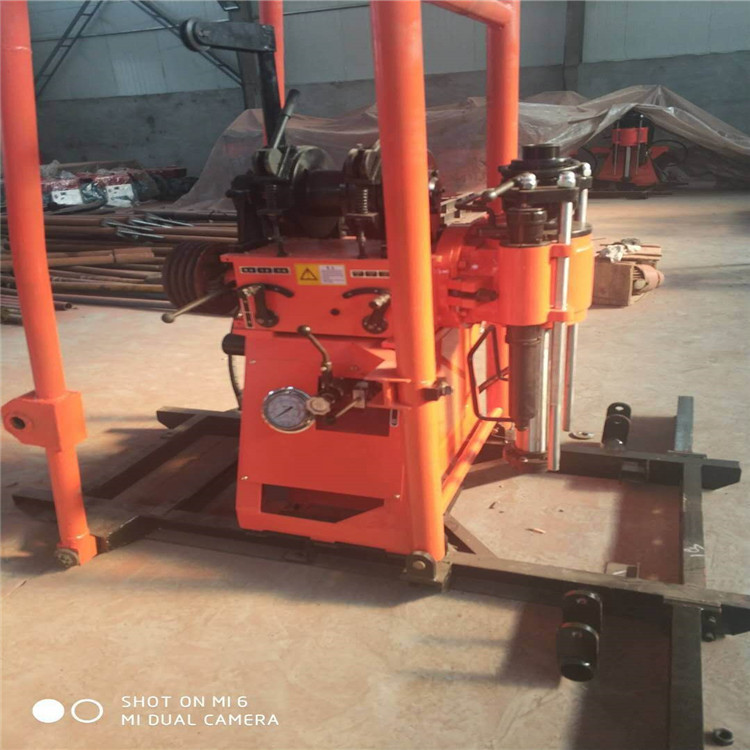

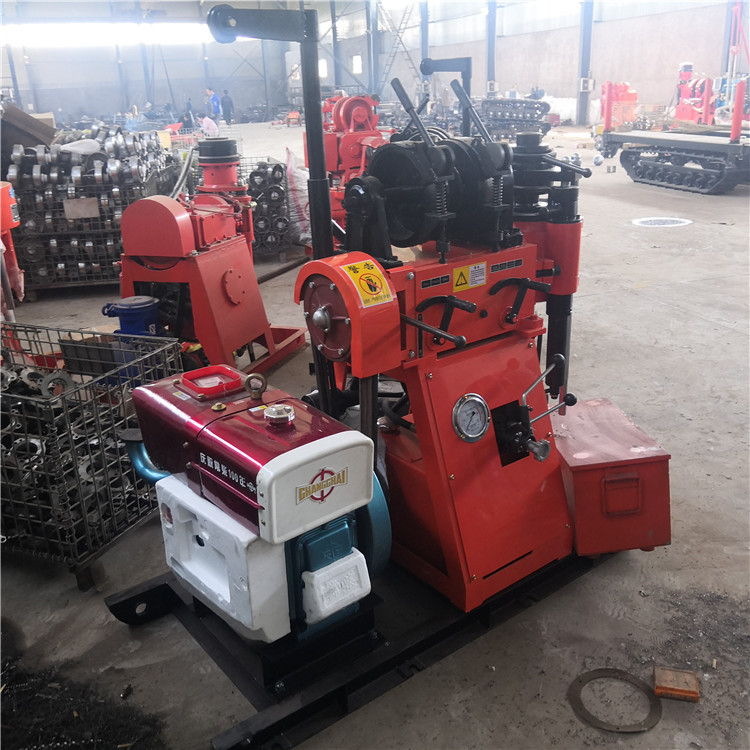

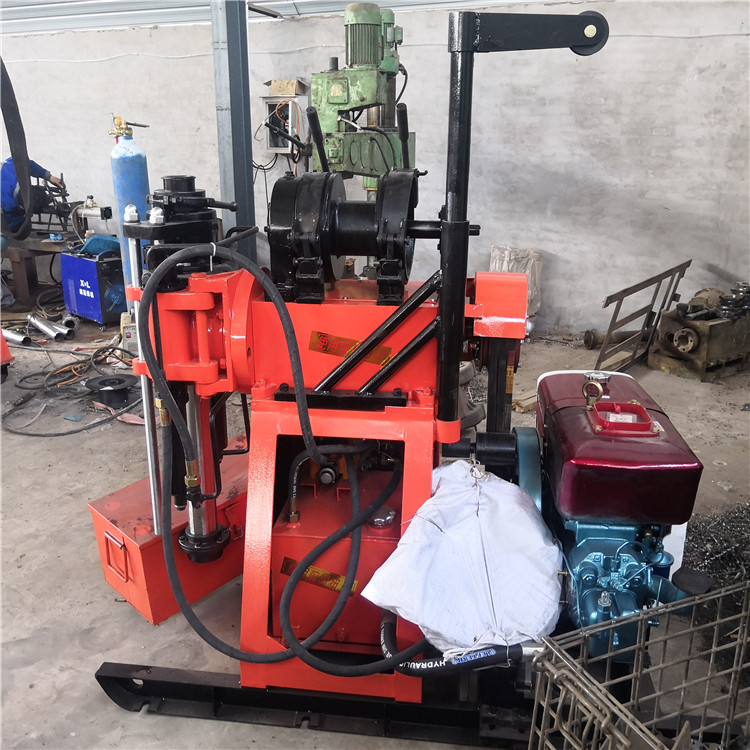

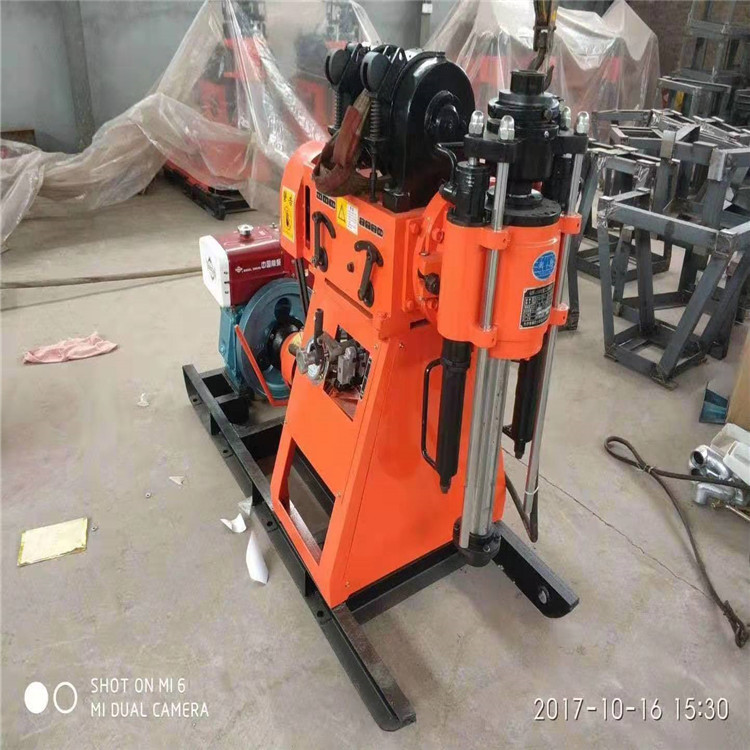

The GY-150 drill is a kind of multi-use portable engineering drill. It is mostly used for the engineering geological exploration and pile foundation in railway,bridge,traffic,hydroelectricity or industrial and civil construction. It can be also used in small diameter water well drilling.
Basic Parameters | |
Drilling depth | 150m |
Drilling diameter | 300mm |
Drill pipe diameter | 42mm |
Gross weight of drilling machine(engine not included) | 500kg |
Dimension (length ×width × height) | 2050 × 1180 × 1420 mm |
Revolving Plate | |
Rotate speed | 60 200 400 610 1100 r/min |
Maximum torque | 1800N*m |
Driving travel | 450mm |
Maximum Cylinder driving force | 20,000N |
Maximum Cylinder lifting force | 30,000N |
Lifter | |
Lifting capacity | 24,000N |
Bobbin line speed (2 layers) | 0.20 0.72 1.26 2.8 m/s |
Bobbin diameter | 140mm |
Rope diameter | 11mm |
Rope capacity | 26m |
Drilling rig | |
Type | Steel pipe quadripod |
Height | 6m |
Drive motor | |
Type | Changzhou ZS1100 diesel engine |
Rated power | 11.03KW |
Tare weighr | 150kg |
{{reply_items.text}}By {{reply_items.author}}
Question: How about your after-sales service? By b***r on 2020-08-30
Answer: 1. Provide customers with online installation and commissioning instructions. 2. Well trained engineers can serve overseas. (non epidemic impact) By admin on 2020-08-30
Question: How is your customer service? By b***r on 2020-07-29
Answer: 24-hour online service. The 48 hour problem was solved (except in special cases). By admin on 2020-07-29
Question: Can you provide us with the documents for customs clearance? By b***r on 2020-06-28
Answer: Of course. We will send you commercial invoice, sales contract, packing list, bill of lading (FOB or CFR, CIF terms), insurance policy (if CIF terms), and certificate of origin if you need it By admin on 2020-06-28
Question: What are the terms of payment? By b***r on 2020-05-27
Answer: TT, Western Union transfer. By admin on 2020-05-27
Question: How long is your delivery time? By b***r on 2020-04-27
Answer: Small hydraulic drilling rigs generally take 5-7 days, and large pneumatic water well drilling rigs generally take 7-15 days. If there is an urgent order, please contact our sales in advance. By admin on 2020-04-27
Question: How long can your air compressor be used? By b***r on 2020-04-26
Answer: Normally more than 10 years. By admin on 2020-04-26
Question: How long is your delivery time? By b***r on 2020-03-24
Answer: Small hydraulic drilling rigs generally take 5-7 days, and large pneumatic water well drilling rigs generally take 7-15 days. If there is an urgent order, please contact our sales in advance. By admin on 2020-03-24
Question: Are you a manufacturer or a trading company? By b***r on 2020-02-23
Answer: We are a 20 years professional manufacturer with ISO certificate. We have a large modern drilling rig plant in Hebei, China. By admin on 2020-02-23
Question: Where is the address of your company? By b***r on 2020-01-22
Answer: Our factory is in Jinzhou, Shijiazhuang City, Hebei Province, China By admin on 2020-01-22
Question: What kind of drilling rig do you have? By b***r on 2020-01-21
Answer: We mainly produce small hydraulic drilling rig, water well drilling rig, core drilling rig, engineering drilling rig, geological exploration drilling rig, etc., and we will recommend the suitable model according to your exact requirement . By admin on 2020-01-21
