GXY-1C Engineering Drilling Rig Portable Hydraulic Core Dri

GXY-1C Engineering Drilling Rig Portable Hydraulic Core Drilling Equipment Mine Use

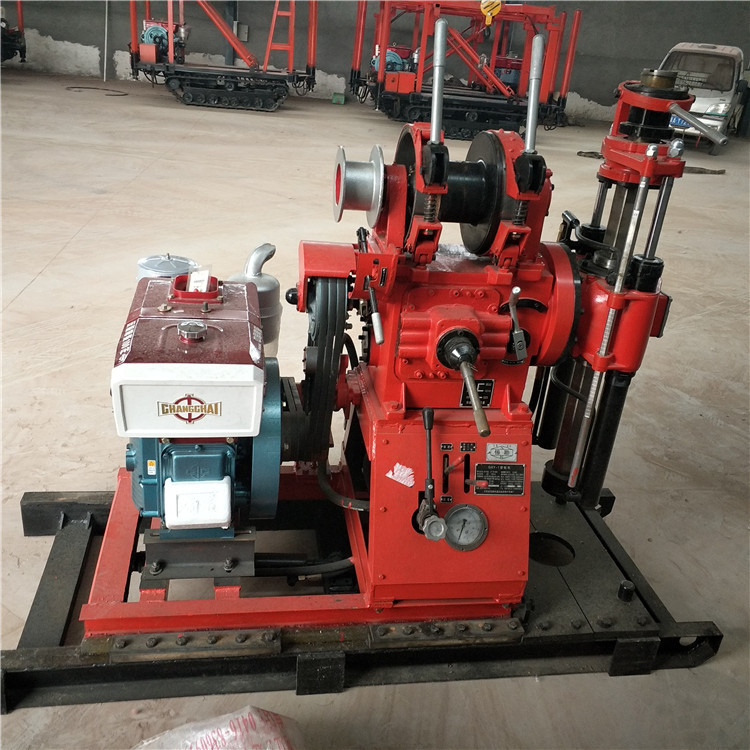

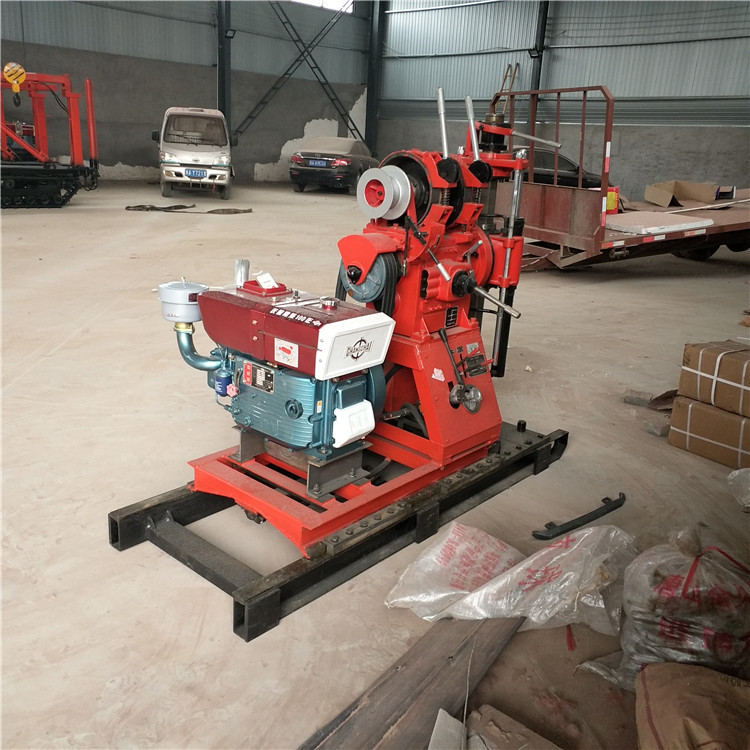

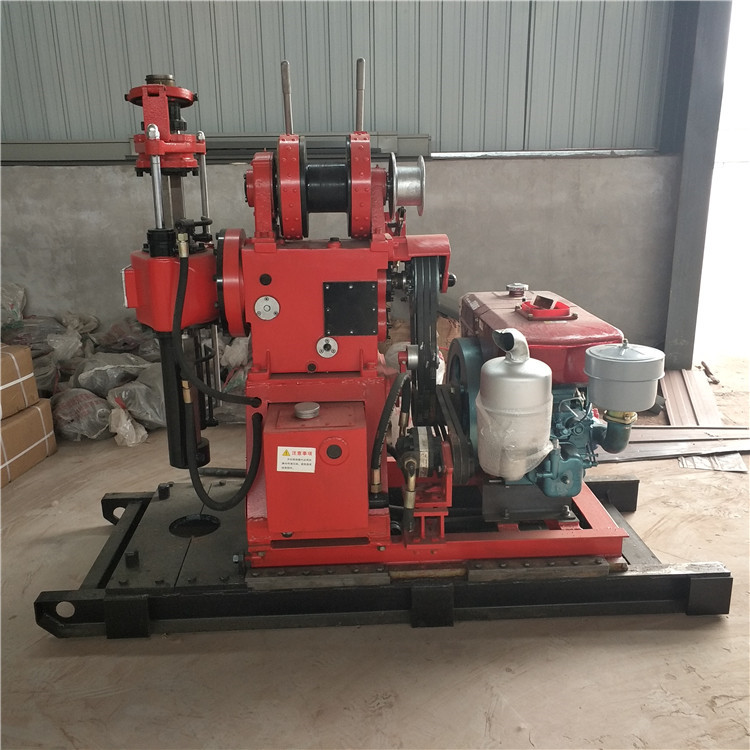

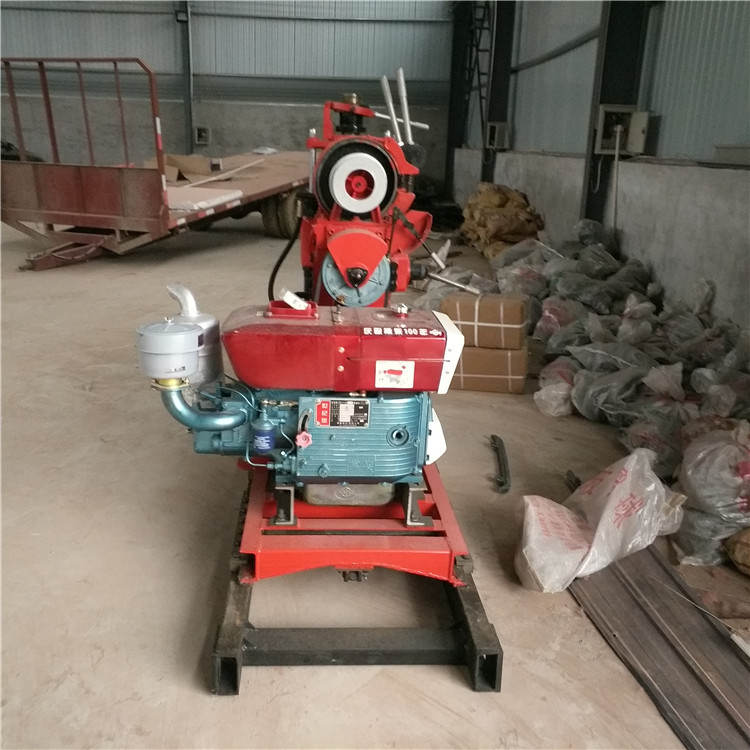

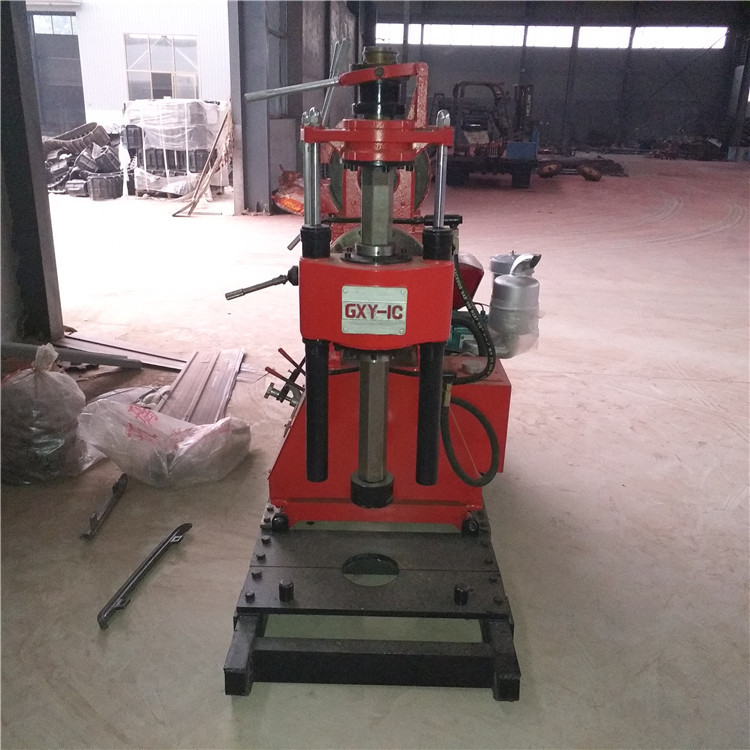

Name: GXY-1C Engineering Drilling Rig Portable Hydraulic Core Drilling Equipment Mine Use
Brand: ShiTan
SKU: 105313
Price: 5560 USD
Availability: InStock
Rating: 5 (2 reviews)

2 customer reviews {{parseInt(detail_data.left_num) ? 'In Stock.' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} SKU.105313

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews Request Quote

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? detail_data.left_num +' In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Download
Questions & Answers
Customer Reviews

$ 5,560

2Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{detail_data.displayed_price.ex_sell_type}}

{{ item.num }} pieces

$ {{ item.price }}

{{item.name}}* {{item.values[0].value}}: {{sku.value}}

Quantity:

{{detail_data.displayed_price.unit_type_name}}(s)

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

$ 5,560 ~~$ 0.00~~

This is a virtual product.

Weight:

{{Number(packInfo.weight).toFixed(2)}} KG

Package:

{{packInfo.length}}cm*{{packInfo.width}}cm*{{packInfo.height}}cm

Returns:

Read details

Add to Wish list

You May Also Like

Description
Description
Specification
Download
Customer Reviews
Questions & Answers

Description

Title goes here.

Main features:1. The drilling machine has high input power, high output torque and strong drilling capacity.2. The output speed range of the drilling machine is wide, which is suitable for both engineering geological investigation and diamond core drilling.3. The drilling machine is equipped with an open box rotator for easy operation of the orifice.4. The utility model has an oil pressure feeding mechanism and a ball clamp type clamping mechanism at the upper end of the vertical shaft, which can improve the drilling efficiency and reduce the labor intensity of the workers.5. The drilling rig is equipped with active drill pipe, which can realize non-stop reversing, with high efficiency, safety and reliability.6. The drilling rig adopts the double plate normally closed friction clutch, which is flexible in opening and closing and convenient in operation and adjustment.7. The gear box of the drilling rig adopts the structure of automobile gear box, with single handlebar speed change and interlock mechanism, which is convenient for operation.8. The drilling machine is separated from the water pump, and the pump and the drilling machine are separately equipped with power, which can improve the output torque of the drilling machine, especially when entering the deep hole for drilling, there will be no contradiction in the use of the water pump due to the decrease of power, so as to avoid accidents in the hole.9. The drilling rig is compact in structure, small in volume, light in weight, and the largest part is less than 100kg, which is convenient for disassembly and handling, and suitable for working in hills or mountains.

Specification

Technical Parameters:

Parameter	GXY-1A	GXY-1B	GXY-1C	GXY-1CQ
Vertical Shaft Speed	Forward:61;163;338;654		Forward:82;220;465;883
	Reverse:45r/min		Reverse:61r/min
Drill Pipe Clamping Method	Ball Cassette	Hydraulic Chuck		Ball Cassette
Drilling Depth	150m
Drill Pipe Diameter	Φ42mm
Vertical Shaft Torque	1200Nm
Lifting Force of Vertical Shaft	25KN
Feed Force of Vertical Shaft	20KN
Vertical Axis Stroke	500mm
Vertical Shaft Through Hole Diameter	Φ53mm
Move Stroke	330mm
Hoisting Single Rope Maximum Lifting Force	15KN
Wire Rope Diameter	Φ9.3mm
Boost Speed	0.22;0.95;1.95;5.3m/s
Power Configuration	Electric Motor Y160M-4(11KW)
	Diesel Engine S1100(12.1KW)
Dimensions (Length × Width × Height)	1980×970×1400mm
Weight (Excluding Power)	650kg

Download

Customer Reviews

Customer Reviews

Write a Review

Average Rating:

{{stardata.star}}

based on {{comment.count}} reviews
{{comment.star5}}%

{{comment.star4}}%

{{comment.star3}}%

{{comment.star2}}%

{{comment.star1}}%

All Reviews ({{comment.star_num?comment.star_num:comment.count}})

All Reviews

5 stars only

4 stars only

3 stars only

2 stars only

1 star only
Reviews with Pictures ( {{comment.pic_comment}} )
See All Reviews

No data

John

Verified Purchase

5 .0

2019-03-14

The Soil Test Drilling Machine is easy to operate, with high efficiency and reasonable design. It is recommended

36 Helpful vote Comments

Jack

Verified Purchase

5 .0

2019-03-02

The drill is very easy to use, with good appearance, good quality and easy to use

31 Helpful vote Comments

Verified Purchase

{{comments.rating}}.0

Showing {{comments.replies.length}} comment

{{reply_items.text}}By {{reply_items.author}}

{{comments.helpfulvote}} Helpful vote Comments

{{pageindex}}

write a review
Average Rating:

based on 94 reviews
98%(92)

3%(0)

0%(0)

0%(0)

0%(0)

Questions & Answers

Questions & Answers
Ask a Question

No data

Question: How about your after-sales service? By b***r on 2020-08-29

Answer: 1. Provide customers with online installation and commissioning instructions. 2. Well trained engineers can serve overseas. (non epidemic impact) By admin on 2020-08-30
Question: How is your customer service? By b***r on 2020-07-28

Answer: 24-hour online service. The 48 hour problem was solved (except in special cases). By admin on 2020-07-29
Question: Can you provide us with the documents for customs clearance? By b***r on 2020-06-27

Answer: Of course. We will send you commercial invoice, sales contract, packing list, bill of lading (FOB or CFR, CIF terms), insurance policy (if CIF terms), and certificate of origin if you need it By admin on 2020-06-28
Question: What are the terms of payment? By b***r on 2020-05-26

Answer: TT, Western Union transfer. By admin on 2020-05-27
Question: How long is your delivery time? By b***r on 2020-04-26

Answer: Small hydraulic drilling rigs generally take 5-7 days, and large pneumatic water well drilling rigs generally take 7-15 days. If there is an urgent order, please contact our sales in advance. By admin on 2020-04-27
Question: How long can your air compressor be used? By b***r on 2020-04-25

Answer: Normally more than 10 years. By admin on 2020-04-26
Question: How long is your delivery time? By b***r on 2020-03-23

Answer: Small hydraulic drilling rigs generally take 5-7 days, and large pneumatic water well drilling rigs generally take 7-15 days. If there is an urgent order, please contact our sales in advance. By admin on 2020-03-24
Question: Are you a manufacturer or a trading company? By b***r on 2020-02-22

Answer: We are a 20 years professional manufacturer with ISO certificate. We have a large modern drilling rig plant in Hebei, China. By admin on 2020-02-23
Question: Where is the address of your company? By b***r on 2020-01-21

Answer: Our factory is in Jinzhou, Shijiazhuang City, Hebei Province, China By admin on 2020-01-22
Question: What kind of drilling rig do you have? By b***r on 2020-01-20

Answer: We mainly produce small hydraulic drilling rig, water well drilling rig, core drilling rig, engineering drilling rig, geological exploration drilling rig, etc., and we will recommend the suitable model according to your exact requirement . By admin on 2020-01-21
