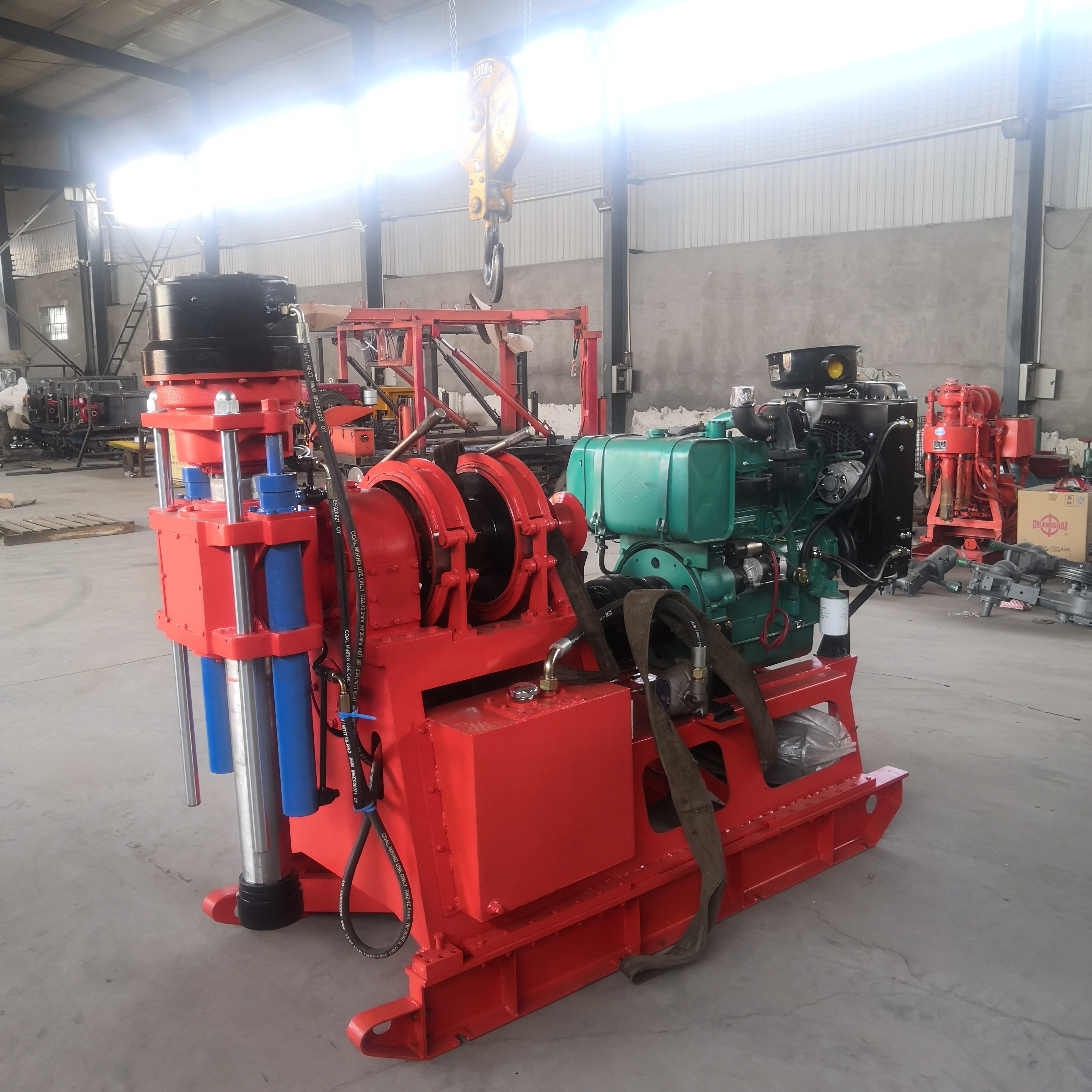

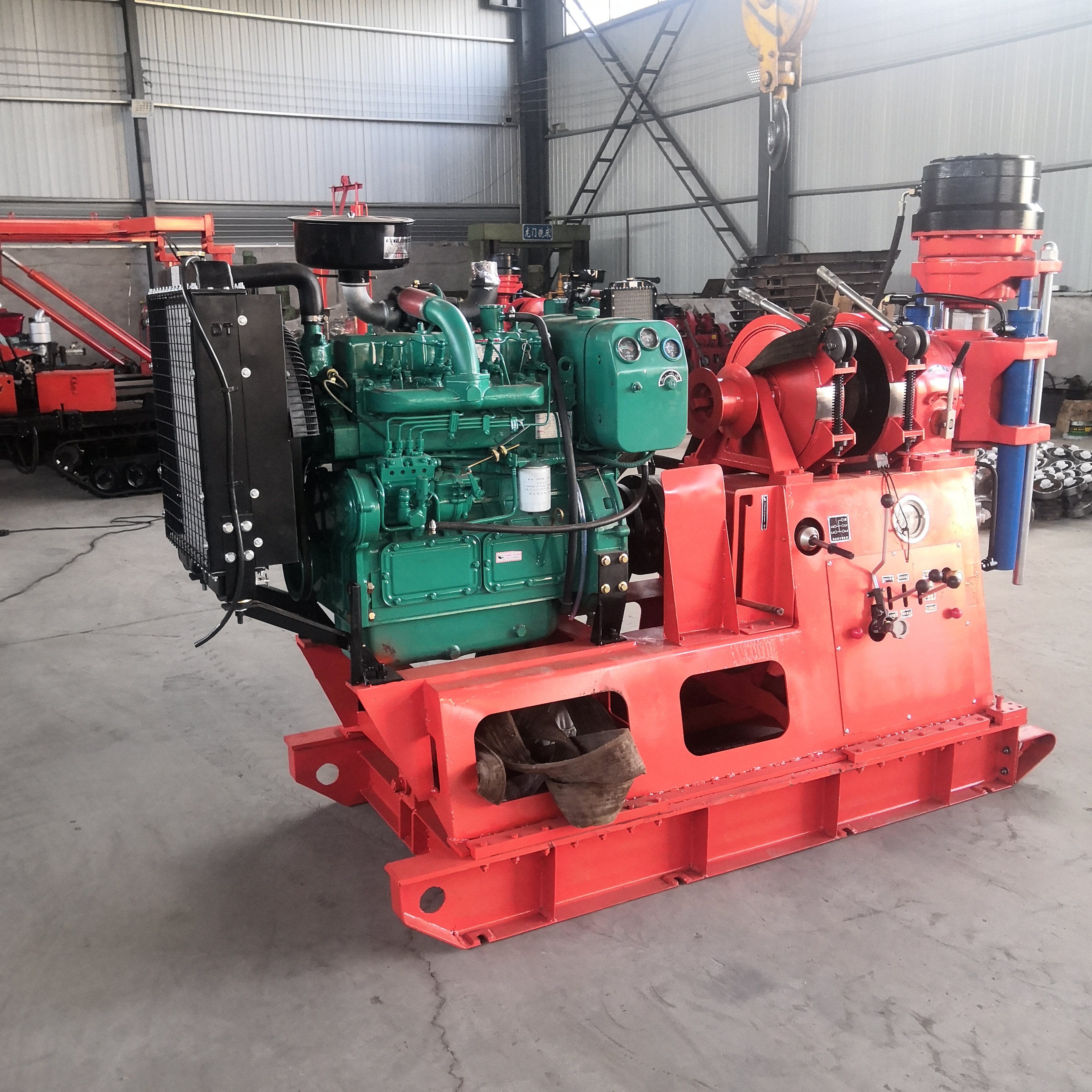

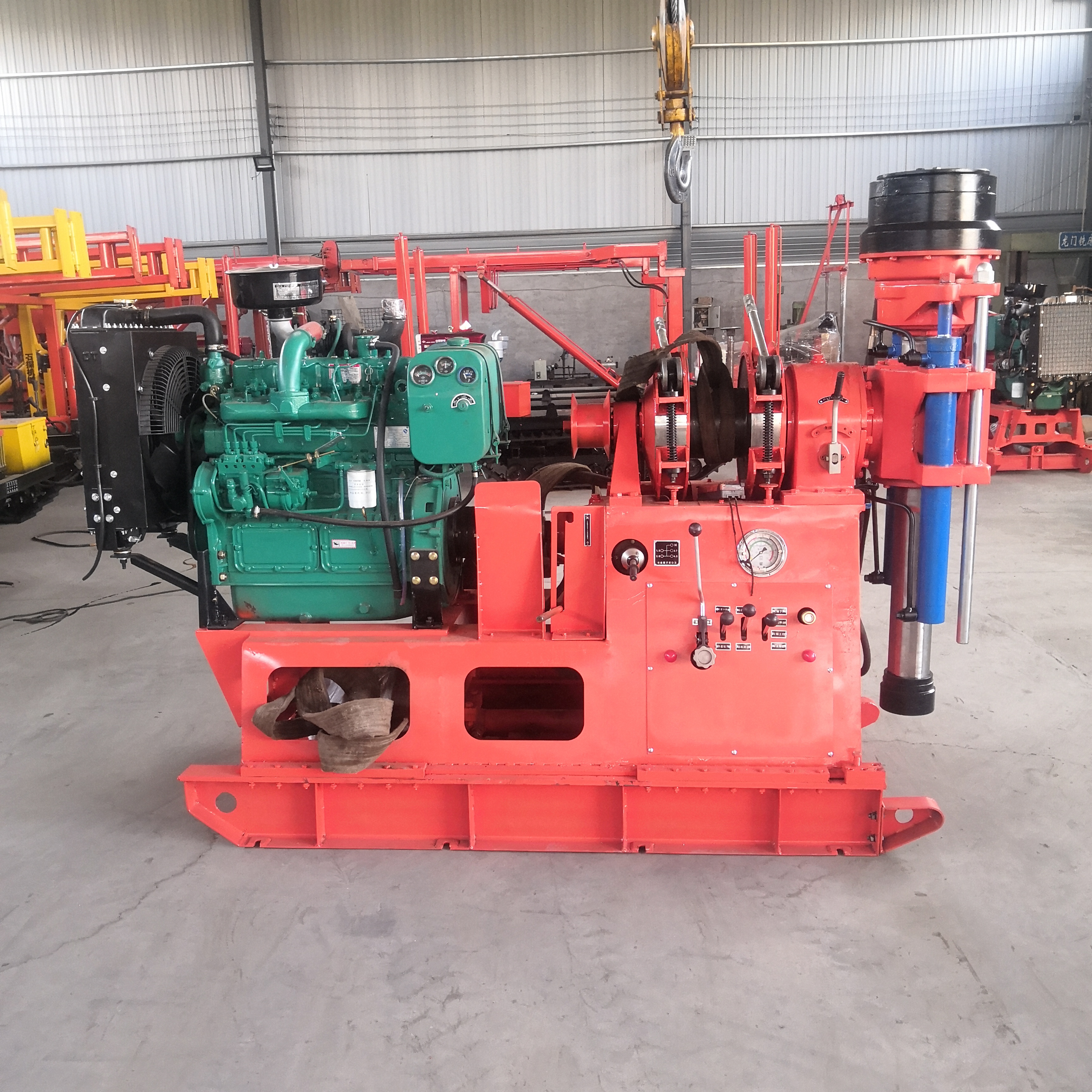

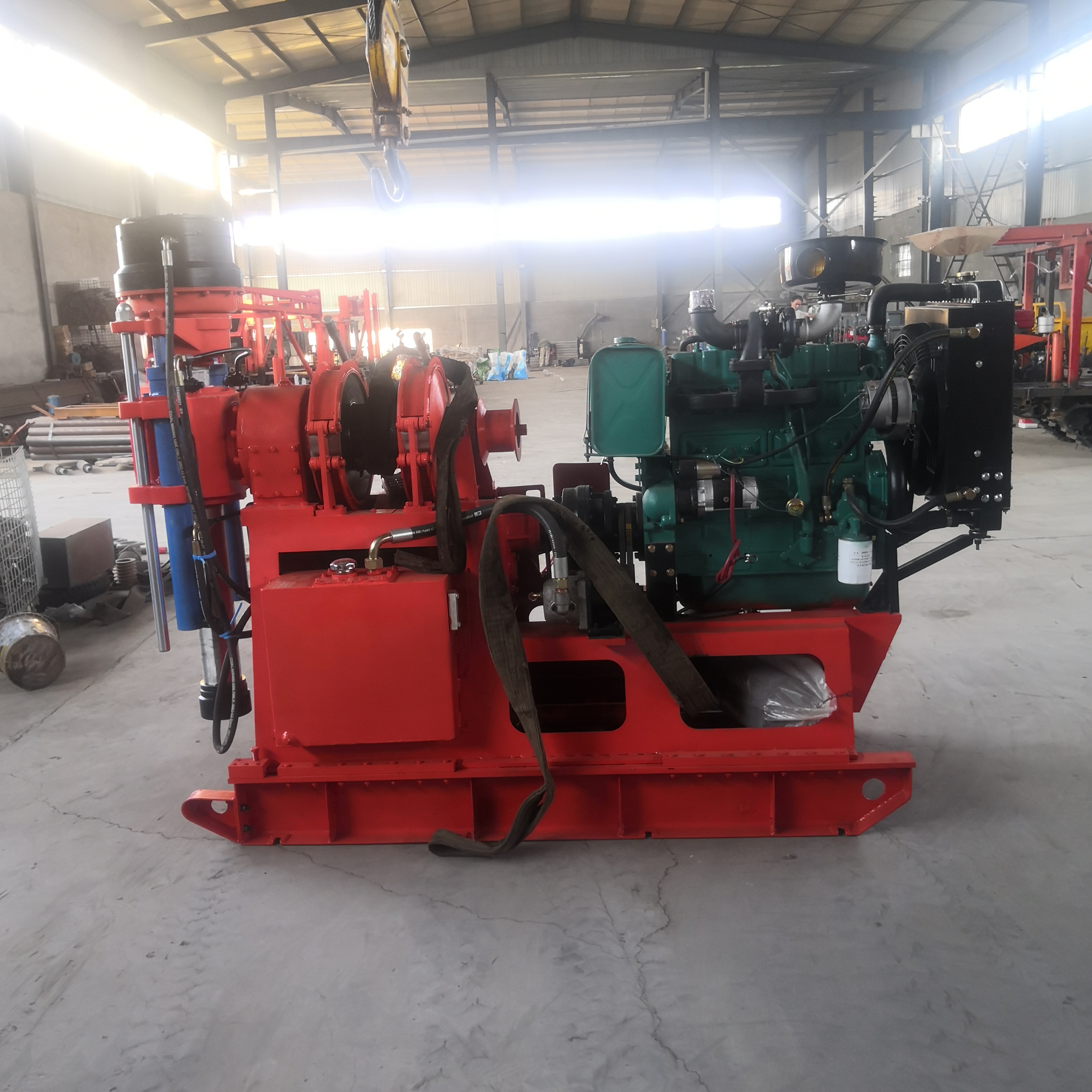

xy-2BDrilling rig is mainly used for geological general investigation and exploration, road and tall buliding foundation exploration,kinds of hole in concrete structure, river levees, subgrade grouting hole ,drilling and driect grouting, civil wells and earth temperature central air-conditioner,etc
Advantages as below
★ Hydraulic feeding mechanism can improve drilling efficient,reducing labor work |
★ The rig equipped with a ball on a cassette holding mechanism and a six driving drill pipe.double guide,the drilling rod can be replaced without shutdown ------------high efficient,convenient operation,safe and reliable |
★ Equipped with hole bottom pressure indicator, you can know the situation inside the hole |
★ Handle centered ,convenient operation |
★ The drilling machine has the advantage of compact structure,small volume, light weight,convenient move, suit for mountain and plain areas. |
★ Adopting large drive pipe,double guide rod, increase the steady |
Diesel engine or Electrical motor. |
Technical specification
Drill | Swivel Head | ||
Drilling depth | Max.100~530m | Spindle speed | 57 99 157 217 270 470 742 1024 r/min |
Hole diameter | Max.600m | Spindle stroke | 560mm |
Drill rod diameter | 42mm | Spindle pull-down | Max.50KN |
Angle range | 0°~90° | Spindle lifting capacity | Max. 60KN |
Oil pump | Water pump | ||
Model | YBC-20/125 | Model | Gear oil pump |
Rated pressure | 8Mpa | Working pressure | Max. 10Mpa |
Flow speed | 20ml/r | ||
Rated speed | 150r/min | ||
Hoist | Power(diesel) | ||
Max. lifting capacity | 212kgs | Model(diesel engine | 395K2 |
Hoisting drum revolution | 20.39.85.170r/m | Rated power | 19.85KW |
Drum diameter | 140mm | Rated speed | 2200 r/min |
WEIGHT | AROUND 1200kgs | ||
SIZE | 2220x900x1880mm | ||
{{reply_items.text}}By {{reply_items.author}}
Question: How about your after-sales service? By b***r on 2020-08-29
Answer: 1. Provide customers with online installation and commissioning instructions. 2. Well trained engineers can serve overseas. (non epidemic impact) By admin on 2020-08-30
Question: How is your customer service? By b***r on 2020-07-28
Answer: 24-hour online service. The 48 hour problem was solved (except in special cases). By admin on 2020-07-29
Question: Can you provide us with the documents for customs clearance? By b***r on 2020-06-27
Answer: Of course. We will send you commercial invoice, sales contract, packing list, bill of lading (FOB or CFR, CIF terms), insurance policy (if CIF terms), and certificate of origin if you need it By admin on 2020-06-28
Question: What are the terms of payment? By b***r on 2020-05-26
Answer: TT, Western Union transfer. By admin on 2020-05-27
Question: How long is your delivery time? By b***r on 2020-04-26
Answer: Small hydraulic drilling rigs generally take 5-7 days, and large pneumatic water well drilling rigs generally take 7-15 days. If there is an urgent order, please contact our sales in advance. By admin on 2020-04-27
Question: How long can your air compressor be used? By b***r on 2020-04-25
Answer: Normally more than 10 years. By admin on 2020-04-26
Question: How long is your delivery time? By b***r on 2020-03-23
Answer: Small hydraulic drilling rigs generally take 5-7 days, and large pneumatic water well drilling rigs generally take 7-15 days. If there is an urgent order, please contact our sales in advance. By admin on 2020-03-24
Question: Are you a manufacturer or a trading company? By b***r on 2020-02-22
Answer: We are a 20 years professional manufacturer with ISO certificate. We have a large modern drilling rig plant in Hebei, China. By admin on 2020-02-23
Question: Where is the address of your company? By b***r on 2020-01-21
Answer: Our factory is in Jinzhou, Shijiazhuang City, Hebei Province, China By admin on 2020-01-22
Question: What kind of drilling rig do you have? By b***r on 2020-01-20
Answer: We mainly produce small hydraulic drilling rig, water well drilling rig, core drilling rig, engineering drilling rig, geological exploration drilling rig, etc., and we will recommend the suitable model according to your exact requirement . By admin on 2020-01-21
