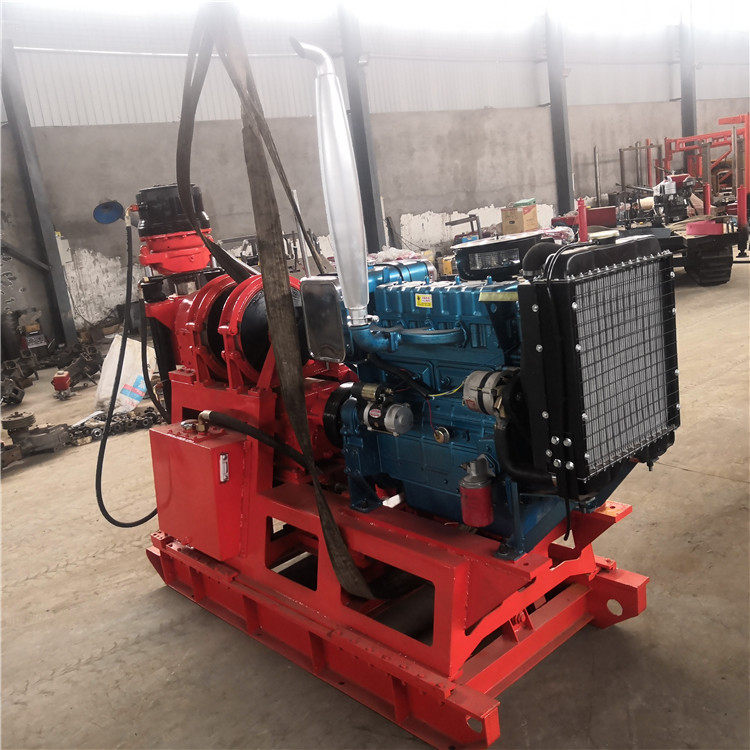

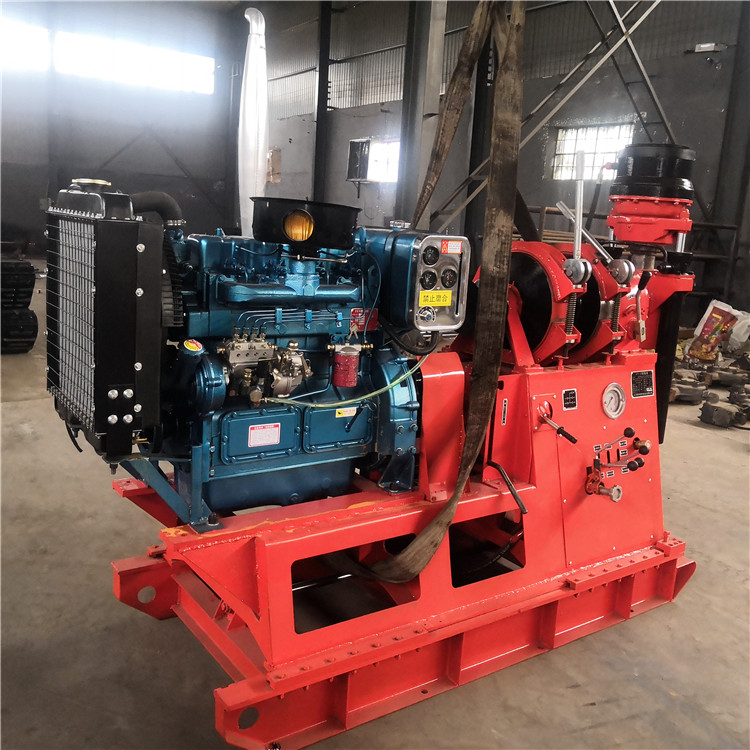

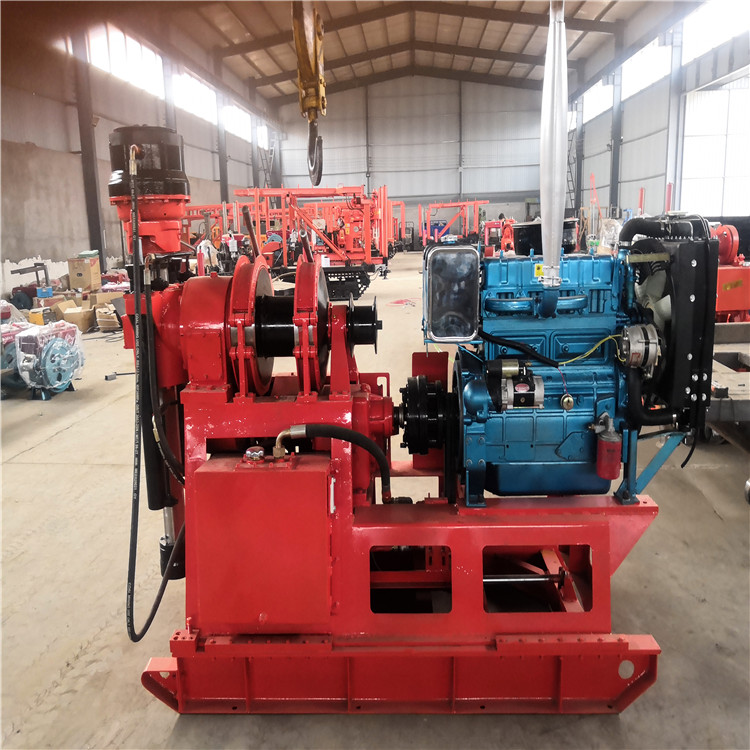

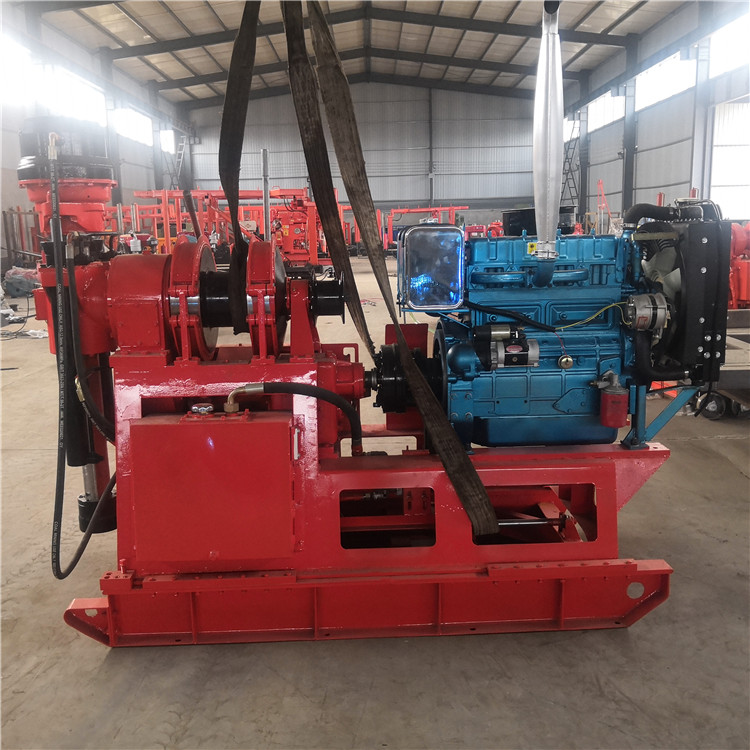

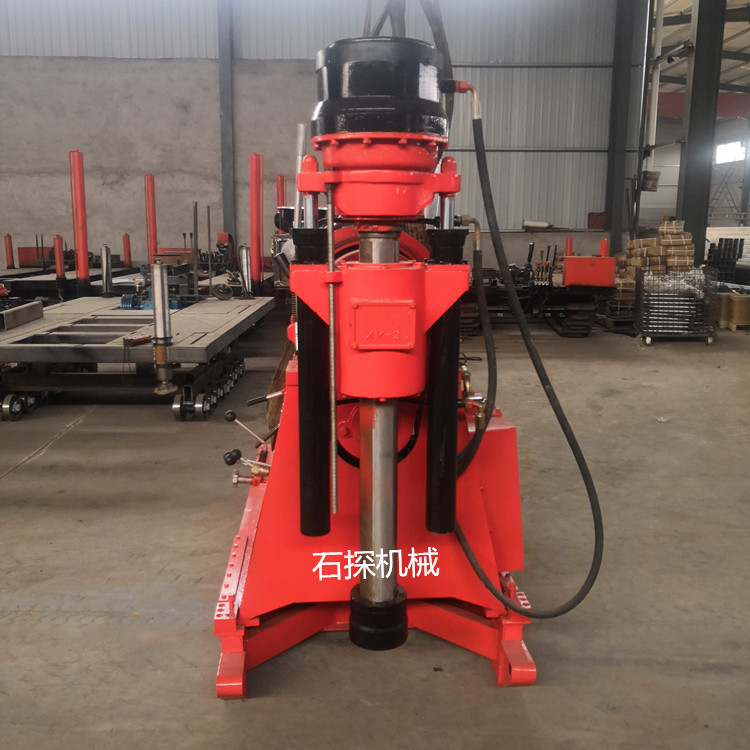

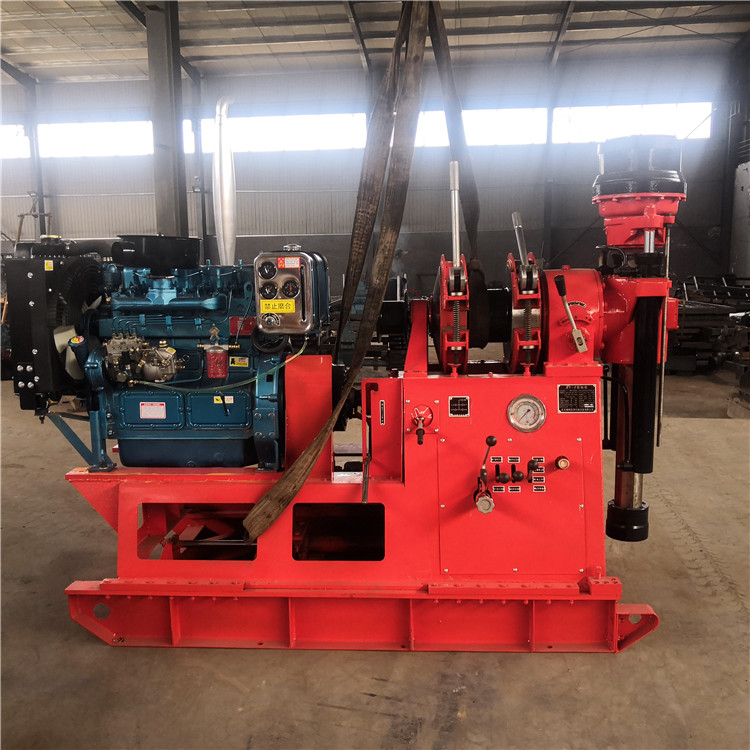

Portable borehole core drilling machine water well drilling rig
The XY-2 Kilometer is a lightweight shallow hole rig with oil pressure feed. Suitable for census exploration, geophysical exploration, road and building exploration, and small well drilling.
1. It has automatic hydraulic feeding mechanism to improve drilling efficiency and reduce labor intensity.
2, using the ball card type clamping mechanism, can achieve non-stop bar, easy to operate, safe and reliable.
3, the handle is concentrated, easy to operate. It is equipped with a bottom pressure gauge to indicate the pressure, which is convenient for grasping the inside of the hole.
4. Compact structure, the rig, water pump and power machine (diesel or electric motor) are assembled on the same base, occupying a small area of the airport. Light weight, high decomposability and easy to move.
Technical specification
Drill | Swivel Head | ||
Drilling depth | Max.300~400m | Spindle speed | 60 105 165 228 235 405 638 880 r/min |
Hole diameter | Max.600m | Spindle stroke | 550kmm |
Drill rod diameter | 42mm | Spindle pull-down | Max.50KN |
Angle range | 0°~360° | Spindle lifting capacity | Max. 37KN |
Oil pump | Water pump | ||
Model | YBC-20/125 | Model | Gear oil pump |
Rated pressure | 8Mpa | Working pressure | Max. 10Mpa |
Flow speed | 20ml/r | ||
Rated speed | 150r/min | ||
Hoist | Power(diesel) | ||
Max. lifting capacity | 212kgs | Model(diesel engine | ZS1115 |
Hoisting drum revolution | 20.39.85.170r/m | Rated power | 18.5KW |
Drum diameter | 140mm | Rated speed | 1800 r/min |
WEIGHT | AROUND 980kgs | ||
SIZE | 2330x1050x1620mm | ||
{{reply_items.text}}By {{reply_items.author}}
Question: How about your after-sales service? By b***r on 2020-08-29
Answer: 1. Provide customers with online installation and commissioning instructions. 2. Well trained engineers can serve overseas. (non epidemic impact) By admin on 2020-08-30
Question: How is your customer service? By b***r on 2020-07-28
Answer: 24-hour online service. The 48 hour problem was solved (except in special cases). By admin on 2020-07-29
Question: Can you provide us with the documents for customs clearance? By b***r on 2020-06-27
Answer: Of course. We will send you commercial invoice, sales contract, packing list, bill of lading (FOB or CFR, CIF terms), insurance policy (if CIF terms), and certificate of origin if you need it By admin on 2020-06-28
Question: What are the terms of payment? By b***r on 2020-05-26
Answer: TT, Western Union transfer. By admin on 2020-05-27
Question: How long is your delivery time? By b***r on 2020-04-26
Answer: Small hydraulic drilling rigs generally take 5-7 days, and large pneumatic water well drilling rigs generally take 7-15 days. If there is an urgent order, please contact our sales in advance. By admin on 2020-04-27
Question: How long can your air compressor be used? By b***r on 2020-04-25
Answer: Normally more than 10 years. By admin on 2020-04-26
Question: How long is your delivery time? By b***r on 2020-03-23
Answer: Small hydraulic drilling rigs generally take 5-7 days, and large pneumatic water well drilling rigs generally take 7-15 days. If there is an urgent order, please contact our sales in advance. By admin on 2020-03-24
Question: Are you a manufacturer or a trading company? By b***r on 2020-02-22
Answer: We are a 20 years professional manufacturer with ISO certificate. We have a large modern drilling rig plant in Hebei, China. By admin on 2020-02-23
Question: Where is the address of your company? By b***r on 2020-01-21
Answer: Our factory is in Jinzhou, Shijiazhuang City, Hebei Province, China By admin on 2020-01-22
Question: What kind of drilling rig do you have? By b***r on 2020-01-20
Answer: We mainly produce small hydraulic drilling rig, water well drilling rig, core drilling rig, engineering drilling rig, geological exploration drilling rig, etc., and we will recommend the suitable model according to your exact requirement . By admin on 2020-01-21
