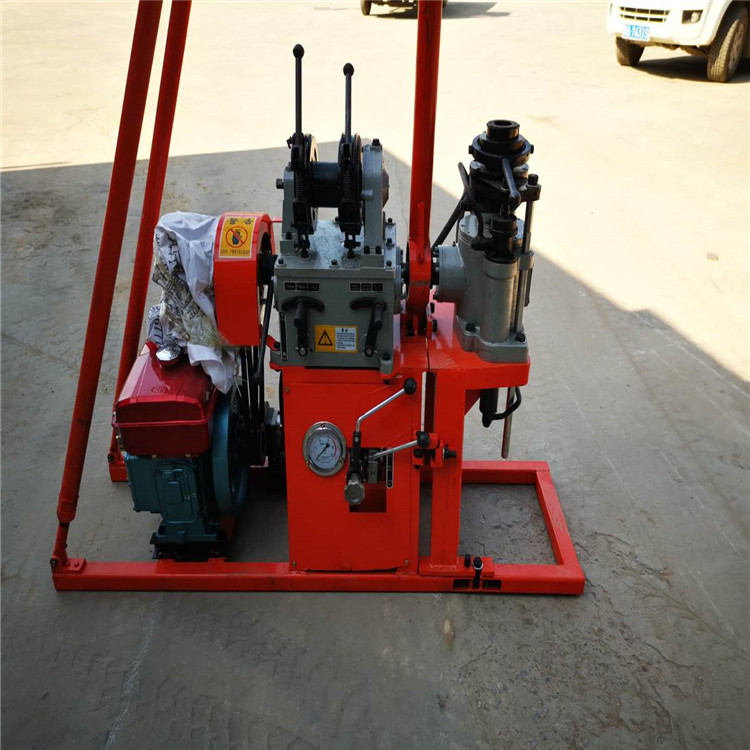

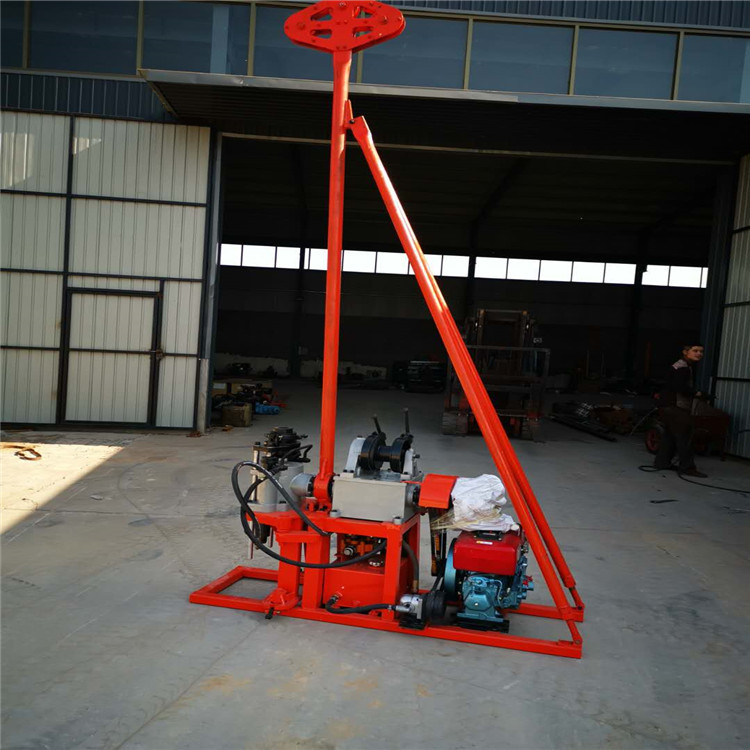

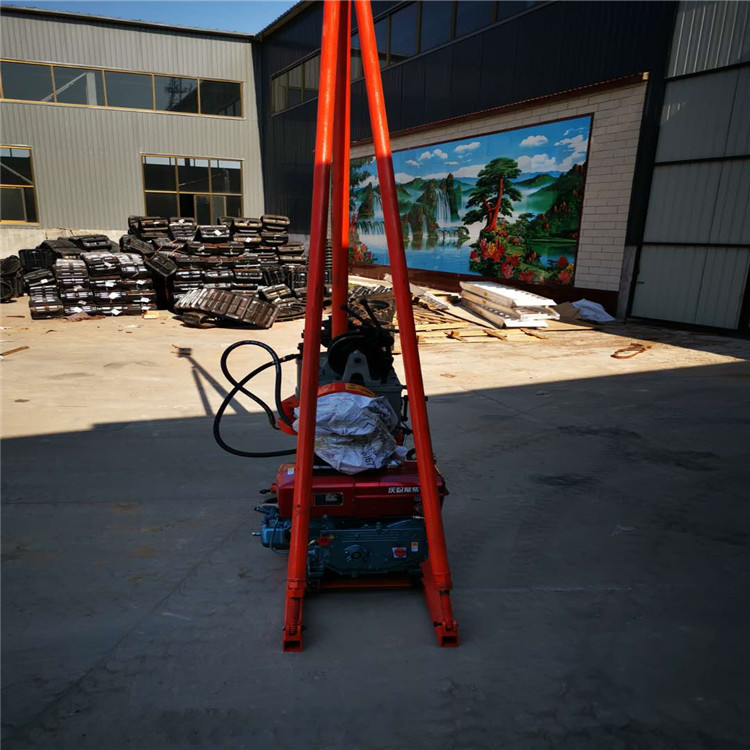

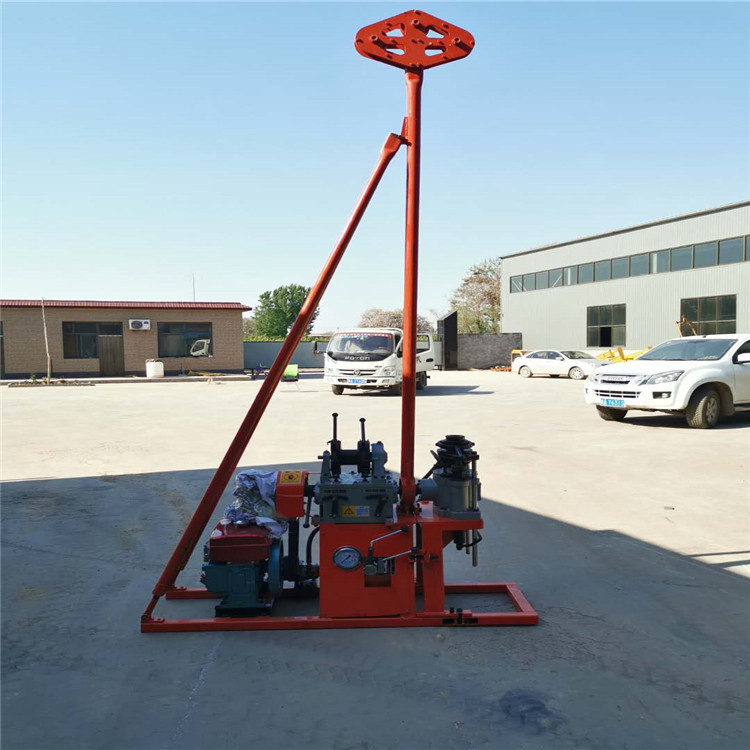

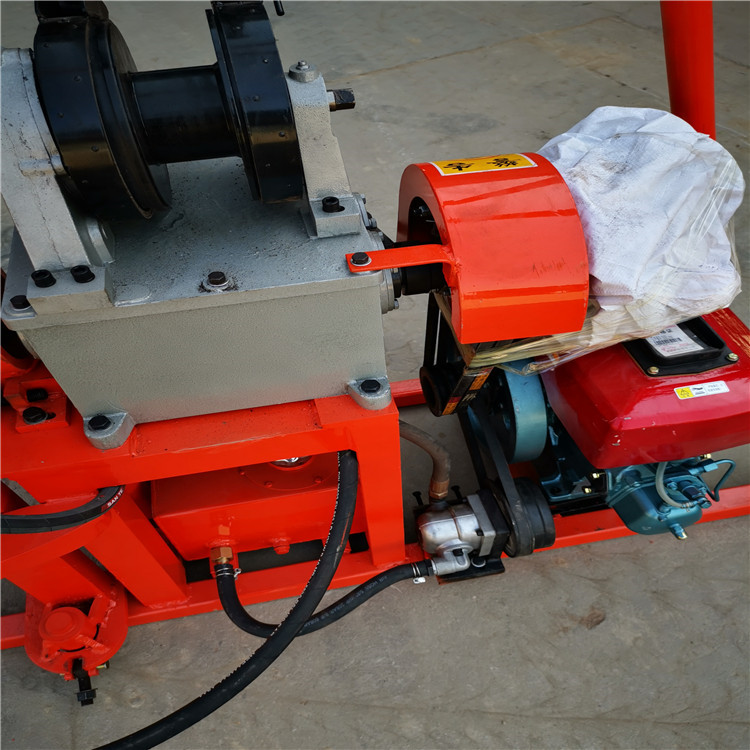

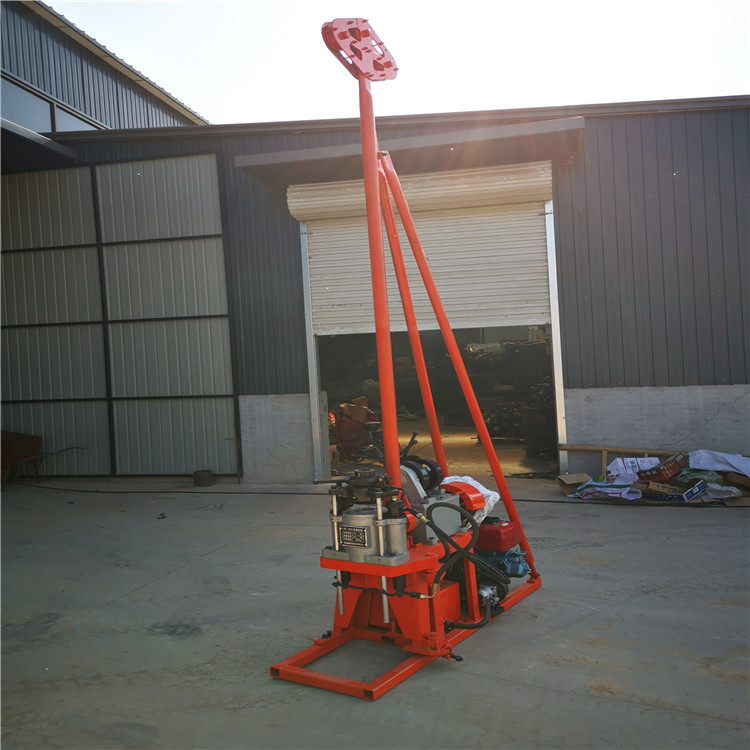

30 Drilling Depth Mini Borehole With High Performance Water Well Drilling Rigs
Small portable water well drilling machines /well borer / well drill:
This machine mainly used for geothermal drilling, farm irrigation , house yard, gardens and water well drilling, drilling diameter is 46-110mm, and drilling depth is 5 m to 30m. It also can be used in small building piling, like farmhouse or factory,
The advantage of the water well drilling machine are as below:
1. Light weight, energy saving.
2. Patented product, unique design and simple drilling structure;
3. Easy to transport and can learn how to handle the machine in short time;
4. Can drill through hard stratum, unless thick rock layer ;
5. One person operation, reduce the labor intensity ;
6. High efficiency and work fast.
7. Assure easily operation and long life service life, free maintainance.
Technical Data | ||||||
Basic data | Elevator | |||||
Drilling depth | 35 15m | Lifting capacity | 4000N | |||
Open hole diameter | 110mm | Drum rotational speed | 0.46 1.15 1.97m/s | |||
Drill pipe diameter | 33.5mm | Drum diameter | 90mm | |||
Weight | 290kg | Wire rope diameter | 8mm | |||
Outsize | 1510*600*1055mm | Wire rope capacity | 18m | |||
Swivel Disc Box | Oil pump | |||||
Speed | 136 338 578 r/min | Type | CBW-F314-ALP gear oil pump | |||
Maximum torque | 350N*m | displacement | 14mL/r | |||
Drilling schedule | 400mm | Rated speed | 2500r/min | |||
the biggest pressure（under the oil Cylinder） | 8000N | Rated pressure | 20MPa | |||
on the biggest force(Oil cylinder) | 10000N | The Max. pressure | 25MPa | |||
Power | Tower | |||||
Motor | Diesel engine | Type | Single seamless steel tube | |||
Type | Y132M-4 | R185 | Tower height | 5.6 Meter | ||
Power | 7.5KW | 6.47KW | ||||
Speed | 1440r/min | 2200r/min | ||||
Weight | 81KG | 95KG | ||||
{{reply_items.text}}By {{reply_items.author}}
Question: How about your after-sales service? By b***r on 2020-08-29
Answer: 1. Provide customers with online installation and commissioning instructions. 2. Well trained engineers can serve overseas. (non epidemic impact) By admin on 2020-08-30
Question: How is your customer service? By b***r on 2020-07-28
Answer: 24-hour online service. The 48 hour problem was solved (except in special cases). By admin on 2020-07-29
Question: Can you provide us with the documents for customs clearance? By b***r on 2020-06-27
Answer: Of course. We will send you commercial invoice, sales contract, packing list, bill of lading (FOB or CFR, CIF terms), insurance policy (if CIF terms), and certificate of origin if you need it By admin on 2020-06-28
Question: What are the terms of payment? By b***r on 2020-05-26
Answer: TT, Western Union transfer. By admin on 2020-05-27
Question: How long is your delivery time? By b***r on 2020-04-26
Answer: Small hydraulic drilling rigs generally take 5-7 days, and large pneumatic water well drilling rigs generally take 7-15 days. If there is an urgent order, please contact our sales in advance. By admin on 2020-04-27
Question: How long can your air compressor be used? By b***r on 2020-04-25
Answer: Normally more than 10 years. By admin on 2020-04-26
Question: How long is your delivery time? By b***r on 2020-03-23
Answer: Small hydraulic drilling rigs generally take 5-7 days, and large pneumatic water well drilling rigs generally take 7-15 days. If there is an urgent order, please contact our sales in advance. By admin on 2020-03-24
Question: Are you a manufacturer or a trading company? By b***r on 2020-02-22
Answer: We are a 20 years professional manufacturer with ISO certificate. We have a large modern drilling rig plant in Hebei, China. By admin on 2020-02-23
Question: Where is the address of your company? By b***r on 2020-01-21
Answer: Our factory is in Jinzhou, Shijiazhuang City, Hebei Province, China By admin on 2020-01-22
Question: What kind of drilling rig do you have? By b***r on 2020-01-20
Answer: We mainly produce small hydraulic drilling rig, water well drilling rig, core drilling rig, engineering drilling rig, geological exploration drilling rig, etc., and we will recommend the suitable model according to your exact requirement . By admin on 2020-01-21
